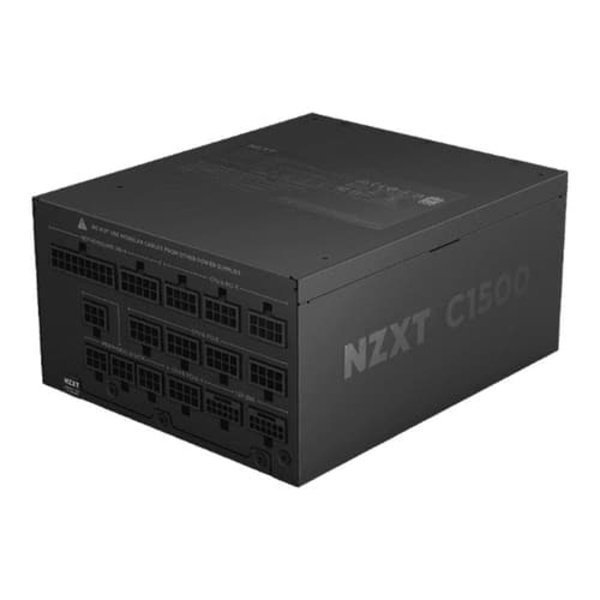

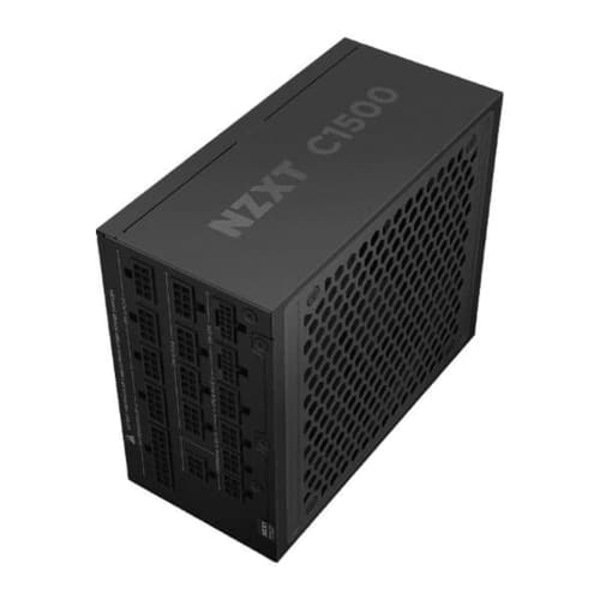

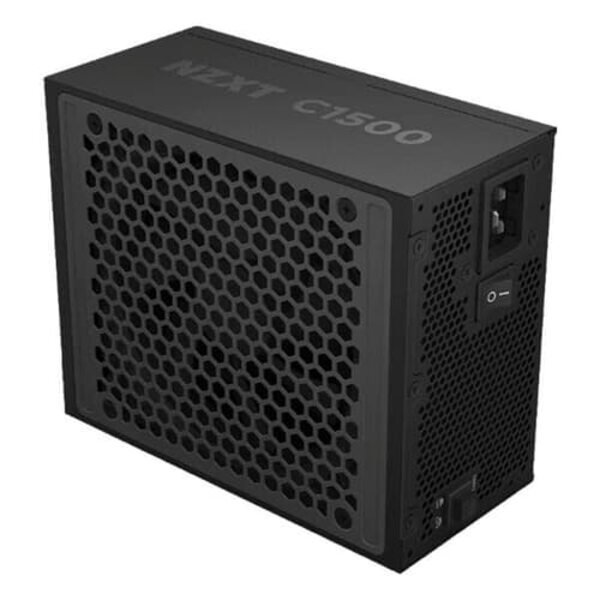

NZXT 1500 Watt 80 Plus Platinum Fully Modular
₹50,846.61 Original price was: ₹50,846.61.₹29,151.69Current price is: ₹29,151.69.

Features:
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2×6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards and boasting a Cybenetics Titanium efficiency rating, the 94% efficiency lowers power usage and ensures quieter, cooler operation.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.

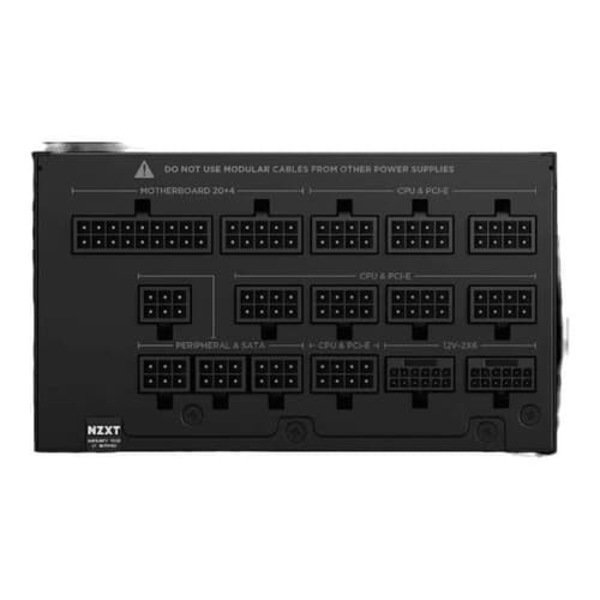

- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
Future-Proof Power:
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.
Dual PCIe 5.1 Connectors:
Equipped with two 16-pin 12V-2×6 cables to power GPUs drawing more than 600 watts.
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
NZXT 1500 Watt 80 Plus Platinum Fully Modular
Magnetic Levitation Fan:
140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.
Specifications:
Model: | PA-5P1BB-UK |
Output Connectors | |
24-pin ATX Power Cable: | 1 |
4+4-pin CPU Power Cable: | 1 |
8-pin CPU Power Cable: | 1 |
6+2-pin PCIe Power Cable: | 6 |
16-pin (12+4) 12V-2×6 PCIe Cable: | 2 |
SATA Cable: | 12 |
Peripherals Cable: | 4 |
Electrical Features | |
PF Correction: | Active @0.99 |
Protections: | OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) |
Cable Specs | |
24-pin ATX Power Cable: | 600mm with nylon sleeving |
4+4-pin CPU Power Cable: | 700mm with nylon sleeving |
8-pin CPU Power Cable: | 700mm with nylon sleeving |
6+2-pin PCIe Power Cable: | 650mm with nylon sleeving |
16-pin (12+4) 12V-2×6 PCIe Cable: | 650mm with nylon sleeving |
SATA Cable: | 500 + 150 mm with nylon sleeving |
Peripherals Cable: | 500 + 150 mm with nylon sleeving |
AC Input Rating | |
100 – 240Vac: | 15A-9A 50Hz-60Hz |
200 – 240Vac: | 9A 50Hz-60Hz |
DC Output Rating | |
3.3V / +5V: | 22A (120W) |
12V: | 125A (1500W) |
5Vsb: | 3A (15W) |
Total: | 1500W (115-240Vac) / 1300W (100-115Vac) |
Energy Efficiency | |
Rating: | 80 Plus Platinum |
10% loading: | 92% @115Vac |
20% loading: | 94% @115Vac |
50% loading: | 93.8% @115Vac |
100% loading: | 90.8% @115Vac |
Fan Specs | |
Dimensions: | 140 x 140 x 25 mm |
Speed: | 2500 ± 10% RPM |
Airflow: | 125 CFM (Tpy.) |
Noise: | 41.0 dBA max |
Bearing: | Magnetic Levitation Bearing (ML) |
Operation | |
MTBF: | 100,000 hours |
Temperature: | 0 – 50 °C |
Dimensions | |
Width: | 5.91 in / 150 mm |
Height: | 3.39 in / 86 mm |
Depth: | 7.09 in / 180 mm |
General | |
Material(s): | Steel, PCB and Plastic |
Compliance Standard: | ATX12V v3.1 / EPS12V v2.92 |
Warranty: | 10 Years |
