ANTEC DP503
₹9,491.53 ₹7,194.92
Features:
Maximum Expansion Potential

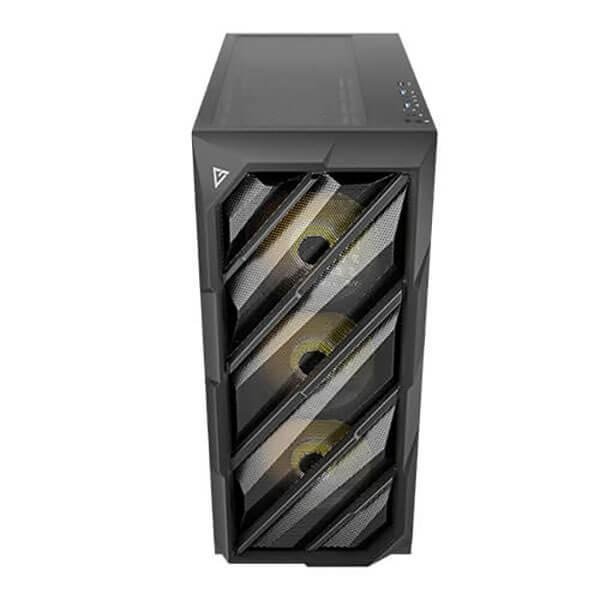

HIGH-AIRFLOW Mesh Front Panel
- Massive Mesh Front Panel with Slanted Bar Design.
- The Magnetic Dust Filter on the Top.
- Pull-Out Dust Filter at the Bottom.
ARGB & PWM CONTROL HUB
The control hub supports up to 6 fans and 6 LED device.Connect it to your motherboard for 16.8 million possible colors. -
9 fans simultaneously
3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
ANTEC DP503
Specification:
Model | DP503 |
Color | Black |
Dimensions | 483 x 220 x 492 mm (DWH) |
Form Factor | Mid Tower |
Materials | Steel, Plastic |
Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |
Front Access & Controls | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 |
Side Panel | 4mm Tempered Glass |
Drive Bays | |
Expansion Slots | 7 |
3.5″ / 2.5″ | 2 / 2 |
2.5″ | 2 |
Fan | |
Front | 120mm x 3 / 140mm x 3 / 185mm x 2 |
Top | 120mm x 3 / 140mm x 2 |
Power Supply Shroud | 120mm x 2 |
Rear | 120mm x 1 |
Included Fan(s) | 120mm ARGB fans in front x 3 |
Radiator Support | |
Front | 120 / 140 / 240 / 280 / 360mm |
Top | 120 / 140 / 240 / 280 / 360mm |
Rear | 120mm |
Clearance | |
Max GPU Length | ≤ 375mm |
Max CPU Cooler Height | ≤ 170mm |
Max PSU Length | ≤ 205mm(with HDD) ≤ 410mm(without HDD) |
Cable Routing Space | ≤ 23mm |
Accessories | |
Fan & LED Control Hub | Yes |
GPU Holder | Yes |

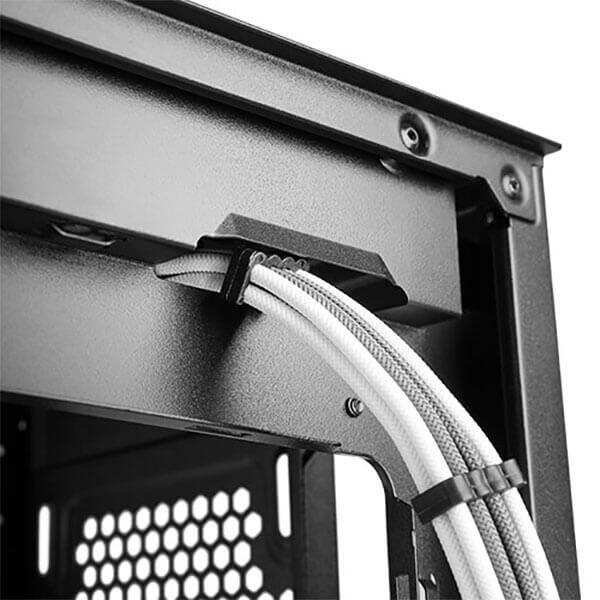

Cable Routing Grommets | Yes, 8 pcs |
Fixed Cable Ties | Yes, 3 pcs |
Captive Thumb Screws | Yes (Side panels, GPU Holder, PSU Brace) |
Miscellaneous | |
Dust Filter | Top / Bottom |
Net Weight | 7.88kg |
Gross Weight | 9.11kg |
Warranty | 2 Years |
