Asrock B760M Pro RS/D4 WiF
₹20,425.42 ₹12,766.10
![](https://pcbworldtech.com/wp-content/uploads/2022/09/22.png)
Features:
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR4 5333MHz (OC)
- 2 PCIe 4.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
-5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
-6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN,
- 802.11ax (WiFi 6E) + Bluetooth 5.3
- Supports ASRock Auto Driver Installe
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
Asrock B760M Pro RS/D4 WiFi
Descripation
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Specifications:
Model Name | B760M Pro RS/D4 WiFi |
Unique Feature | Rock-Solid Durability – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT – Pre-Installed I/O Shield – ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity – 2.5G LAN, 802.11ax Wi-Fi 6EModule EZ Update – ASRock Auto Driver Installer EZ Troubleshooter |
CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
Chipset | – Intel® B760 |
Memory | – Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 |
BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support |
Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
Wireless LAN | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 + High speed class II – Supports MU-MIMO |
Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks – Supports AMD CrossFire™ |
Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
Connector | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header |

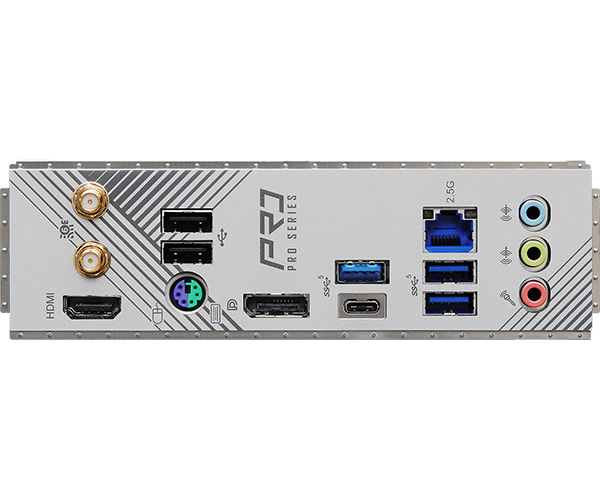

Rear Panel I/O | – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
Accessories | – 1 x User Manual – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 2 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket |
Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
