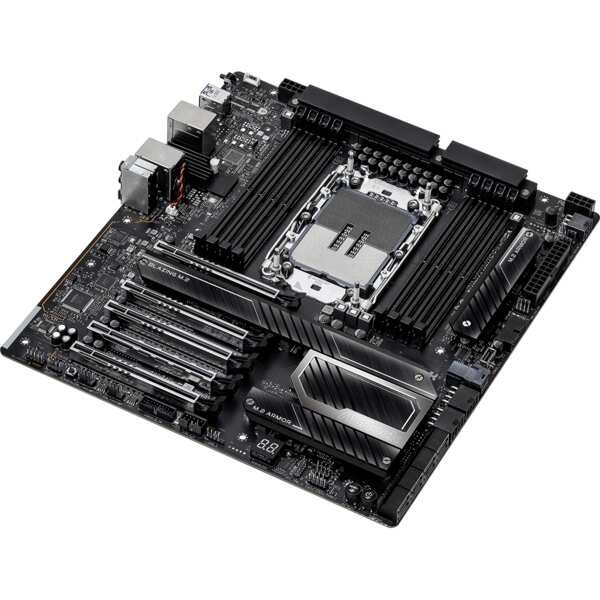

ASROCK W790 WS R2.0

Brand:

Asrock

Supports 4th Gen Intel Xeon W-3400 and W-2400 Processors (LGA4677)
20+2 Power Phase, 90A SPS Design
14 Layer Server-Grade Ultra Low-Loss PCB
8 x DDR5 DIMMs
Supports Quad Channel ECC Registered memory, up to 6800+ (OC)
4 PCIe 5.0 x16, 1 PCIe 4.0 x16
4 Blazing M.2 (PCIe Gen5 x4), 8 SATA3
1 U.2 mini SAS Connector (PCIe Gen4 x4)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 (Rear)
7 USB 3.2 Gen1 (3 Rear, 4 Front)
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Marvell AQUANTIA 10 GbE LAN
Intel i226LM 2.5 GbE LAN
Supports ASRock Blazing Quad M.2 Card

Size Guide
Size Guide
DRESSES
T-SHIRT
BOTTOMS

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

2XS 32 26 32

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.
Delivery & Return
Goods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.

Size	Chest	Waist	Hips
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
2XL	44	38	44
All measurements are in INCHES and may vary a half inch in either direction.

Size	Chest	Waist	Hips
2XS	32	26	32
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
All measurements are in INCHES and may vary a half inch in either direction.

Size	Chest	Waist	Hips
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
2XL	44	38	44
All measurements are in INCHES and may vary a half inch in either direction.

... people are viewing this right now

Compare

Guaranteed Safe Checkout

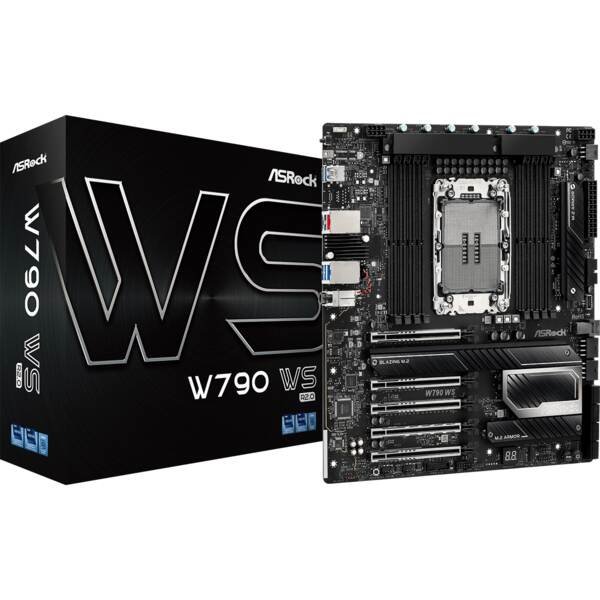

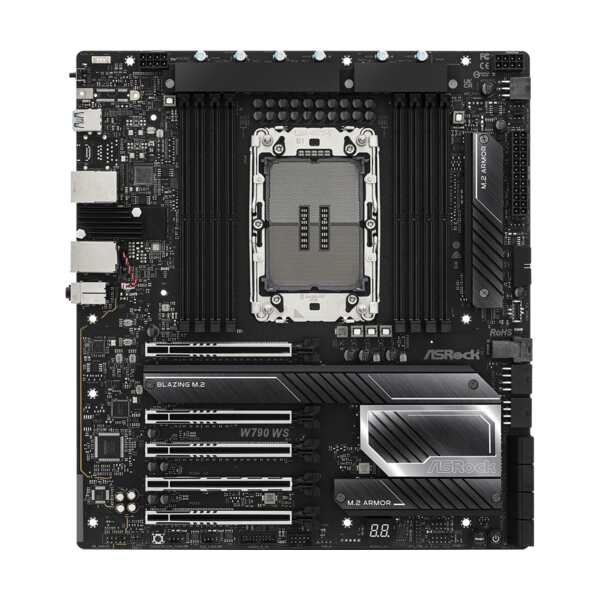

ASROCK W790 WS R2.0

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

SPECIFICATIONS:

Superb Productivity	PCIe Gen5 (Graphics, M.2) Quad Channel DDR5
Rock-Solid Durability	Ultra Low-Loss PCB 20+2 Power Phase, 90A SPS Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity	Marvell (Aquantia) 10GbE LAN Intel® 2.5GbE LAN Intel® vPro for Workstations with Intel® Advanced Management Technology
EZ Update	BIOS Flashback Button ASRock Auto Driver Installer
CPU	Supports 4th Gen Intel® Xeon® W-3400 and W-2400 Processors (LGA4677) Supports Intel® Boot Guard Supports Intel® Trusted Execution Technology (Intel® TXT) Supports Intel® Turbo Boost Technology Supports Intel® Virtualization Technology (Intel® VT) Supports Intel® Hyper-Threading Technology (Intel® HT Technology) Supports Intel® Data Streaming Accelerator (Intel® DSA) Supports CXL (Compute Express Link) 1.1
Chipset	Intel® W790 Supports Intel® vPro Technology Supports Intel® Active Management Technology
Memory	Quad Channel DDR5 Memory Technology 8 x DDR5 DIMM Slots* Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9×4) up to 6800+(OC)** Max. capacity of system memory: 2TB S3 (Sleep) mode is supported only when 1 / 2 / 4 DIMMs memory modules are installed. 1DPC Up to 6800+ MHz (OC) with X-Series CPU, 4800 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5. 2DPC Up to 6200+ MHz (OC) with X-Series CPU, 4400 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5. Supports 4400 MHz Natively for Xeon® W3, W5-3423 and W5-3433. Overclocking is not supported. *Actual support may vary by CPU
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	n/a
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN	1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) Support Wake-On-LAN Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226LM) Support Wake-On-LAN Support PXE Supports Intel® vPro Technology
Slots	CPU: 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* 15μ Gold Contact in VGA PCIe Slots Supports NVMe SSD as boot disks
Storage	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 8 x SATA3 6.0 Gb/s Connectors 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	1 x USB 3.2 Gen2x2 Type-C (Front) 2 x USB 3.2 Gen2 Type-A (Rear) 7 x USB 3.2 Gen1 (3 Rear, 4 Front) 3 x USB 2.0 (Front) All USB ports support ESD Protection
Connector	1 x Virtual RAID On CPU Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard) 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Clear CMOS Button 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP_3A supports the fan power up to 3A (36W). * CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP_3A and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. ** It is optional to connect an ATX 12V 6-pin Cable to ATX12V3, which provides more power for overclocking. *** Use either GTX_12V1 or GTX_12V2 when you install one or two PCIe card(s). Use both connectors when you install more than two PCIe cards. Otherwise, the system may not boot up properly.

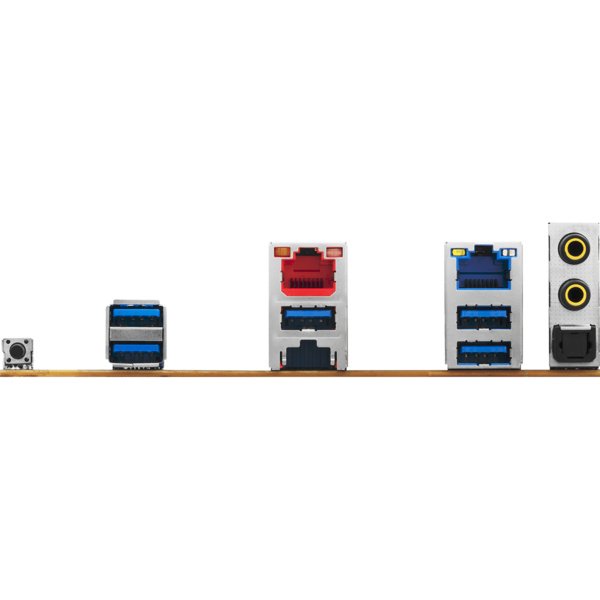

Rear Panel I/O	1 x Optical SPDIF Out Port 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 3 x USB 3.2 Gen1 Type-A Ports 2 x RJ-45 LAN Ports 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI	Software ASRock Motherboard Utility (A-Tuning) UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	1 x User Manual 1 x I/O Shield 4 x SATA Data Cables 1 x CPU Carrier for LGA 4677 E1A 1 x CPU Carrier for LGA 4677 E1B 4 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets
Form Factor	EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm 14 Layer PCB
OS	Microsoft Windows® 10 64-bit / 11 64-bit Linux Linux supported by Intel® via the upstreaming of Intel® Linux drivers to the Linux Open Source Community. Adoption into individual Linux distributions is dependent upon the OS vendor
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready
