ASUS ROG MAXIMUS Z790 EXTREME MOTHERBOARD

Name: ASUS ROG MAXIMUS Z790 EXTREME MOTHERBOARD
Brand: Asus
SKU: ROG MAXIMUS Z790 EXTREME
Price: 95480.00 INR
Availability: InStock

₹80,915.25

Brand:

Asus

Intel^® LGA 1700 socket: Ready for 13^th Gen Intel^® Core^™ processors & 12^th Gen Intel Core^™, Pentium^® Gold and Celeron^® Processors

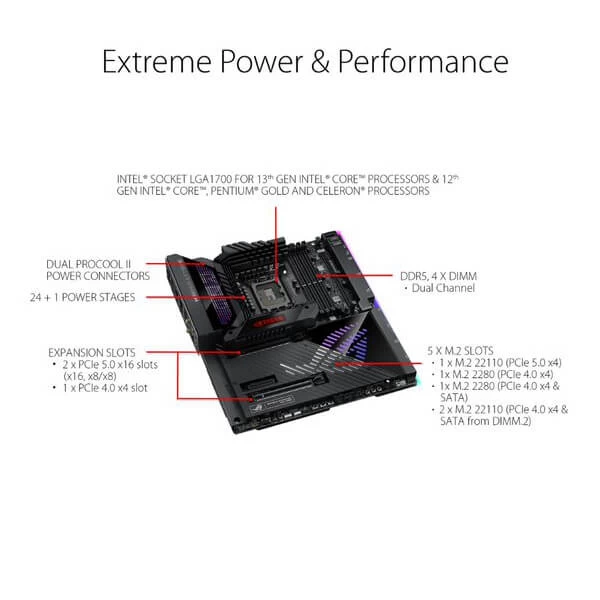

Dominant Power Solution: 24 + 1 teamed power stages rated for 105A with dual ProCool II power connectors, high-quality alloy chokes, and premium metallic capacitors to support multi-core processors

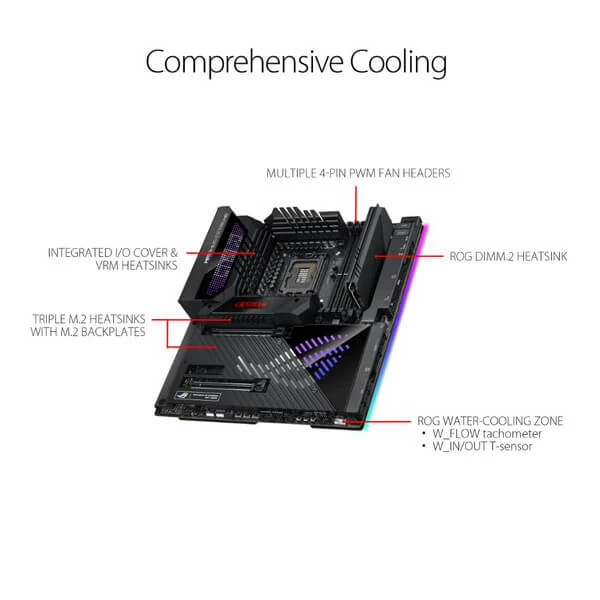

Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
Next-Gen M.2 Support: On-board PCIe^® 5.0 M.2 slot and two PCIe 4.0 M.2 slots all with front and back heatsinks, and two additional PCIe 4.0 M.2 slots on the ROG DIMM.2
Abundant Connectivity: Thunderbolt^™ 4 USB Type-C^® port and front-panel connector, USB 3.2 Gen 2×2 Type-C^® port and front-panel connector with Quick Charge 4+ up to 60W, eight additional USB 3.2 Gen 2 ports, two PCIe 5.0 x16 SafeSlots, HDMI^® 2.1
High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax), Marvell^® AQtion 10Gb, Intel 2.5 Gb Ethernet, and ASUS LANGuard
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
Immersive Audio: ROG SupremeFX ALC4082 codec with ESS^® ES9218 Quad DAC for up to 32-Bit/384 kHz playback
Unmatched Personalization: AniMe Matrix^™ LED display, 2” LiveDash Color OLED, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
DIY Friendly Design: ROG Water Cooling Zone, PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack^™ button, and Clear CMOS button
Renowned Software: Bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Available on backorder

Size Guide
Size Guide
DRESSES
T-SHIRT
BOTTOMS

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

2XS 32 26 32

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.
Delivery & Return
Goods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.

... people are viewing this right now

Guaranteed Safe Checkout

ROG MAXIMUS Z790 EXTREME

Specification:

CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z790 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics	1 x HDMI® port* 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs** Supports 4K@60Hz as specified in HDMI 2.1. * VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slot	Intel® 13th & 12th Gen Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z790 Chipset 1 x PCIe 4.0×4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports* * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. * RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.
Ethernet	1 x Intel® 2.5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Supports Intel® Double Connect Technology Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB	Rear USB (Total 10 ports) 1 x Thunderbolt™ 4 ports (1 x USB Type-C®) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) Front USB (Total 10 ports) 1 x Thunderbolt™ 4 connector (supports USB Type-C®) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – ESS® ES9218 QUAD DAC – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover
Back Panel I/O Ports	1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® ) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x Aura RGB header 2 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features	Extreme OC Kit – FlexKey button – LN2 Mode – ProbeIt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – Metal backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – ROG Aura Sync backplate – Aura RGB header – Addressable Gen 2 headers Dual BIOS 2″ LiveDash Color OLED Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support – Support: up to 60W charging* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W will be supported.
Software Features	ROG Exclusive Software – GameFirst VI – ROG CPU-Z – ROG True Voltician – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving – AniMe Matrix™ – Two-Way AI Noise Cancellation – OLED Display AI Suite 3 – Easy Optimization with AI Overclocking – TPU – DIGI+ Power Control – Turbo app – PC Cleaner MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode MemTest86
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller velcro tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Additional Cooling Kit 1 x Thermal pad for M.2 1 x DDR5 Fan holder Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x ROG key chain 1 x ROG logo plate sticker 1 x ROG multi-bit screwdriver 1 x ROG stickers 1 x ROG VIP card 1 x Screw package for M.2 SSD Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
Warranty	3 Years
Note**	**Prices, Specifications & Features are subject to change without notice.
