MSI MAG A750GL PCIE5
Features:
MAG A750GL PCIE5

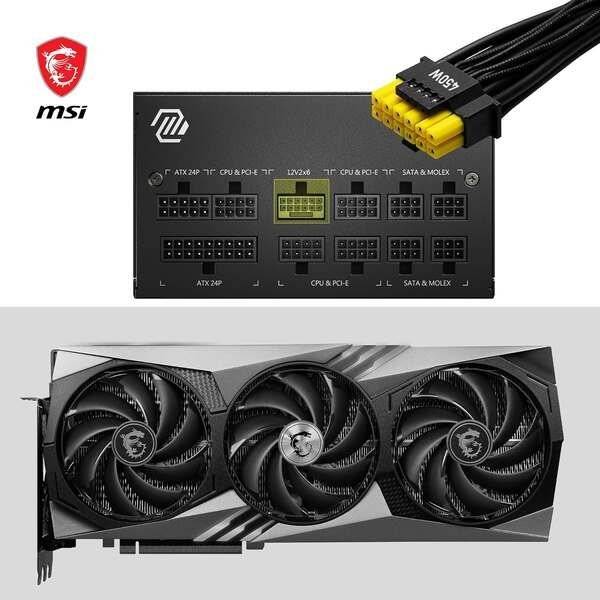

- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
MSI MAG A750GL PCIE5
THE POWER YOU HAVE:
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS:
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Specification:
Model | MAG A750GL PCIE5 |
Efficiency Rating | 80 PLUS Gold (up to 90%) |
Modular | Yes (full modular) |
Fan Size | 120 mm |
Fan Bearing | Fluid Dynamic Bearing |
Dimensions (DxWxH) | 140 x 150 x 86 mm |
PFC Type | Active PFC |
Input Voltage Range | 100~240 VAC |
Power Watt | 750W |
Power Excursion | 1500W (*up to 200% of the PSU’s rated power for 100μs) |
Input Frequency Range | 47-63Hz |
Protection | OCP / OVP / OPP / OTP / SCP / UVP |
ATX (24 pin) | 1 |
EPS (4+4 pin) | 2 |
PCI-E 5.0 (16 pin) | 1 (450W) |
PCI-E (6+2 pin) | 3 |
SATA (15 pin) | 8 |
MOLEX (4 pin) | 4 |
FDD (4 pin) | 1 |
Warranty | 7 Years |
