MSI MAG Z790 TOMAHAWK WIFI DDR5

49,151.69

Brand:
MSI

Features:

  • Support Intel® Coreâ„¢ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level materia

Available on backorder

+
  •  Size Guide

    Size Guide

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    2XS 32 26 32
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

  •  Delivery & Return
    Goods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.

    Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.

    Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
  ... people are viewing this right now

  Share
Guaranteed Safe CheckoutTrust

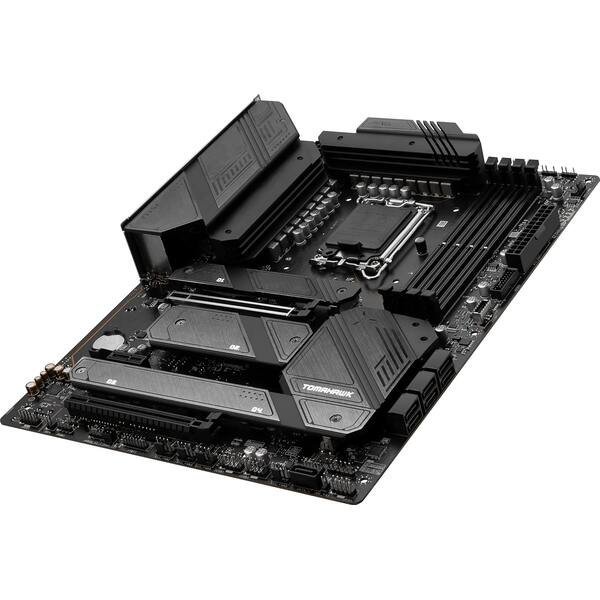

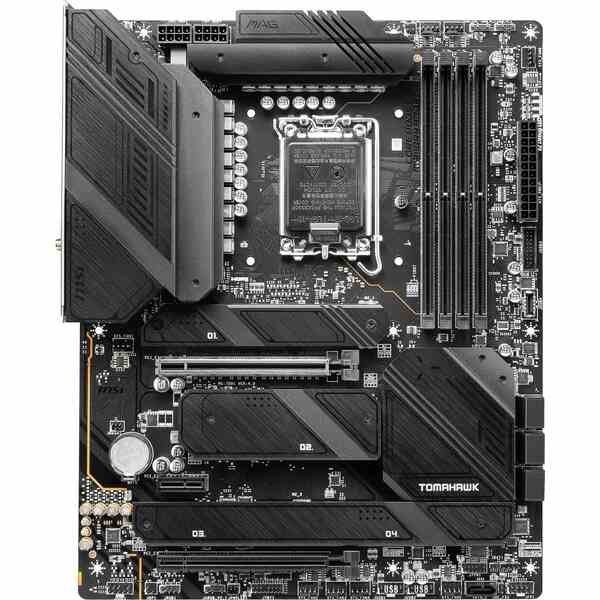

MSI MAG Z790 TOMAHAWK WIFI DDR5

The MSI MAG Z790 TOMAHAWK Motherboard is built to support the latest 12th and 13th Gen Intel Coreprocessors for the LGA 1700 socket. This motherboard is equipped to handle high-speed DDR5 memory, allowing you to maximize system responsiveness.Upgrade to the MSI Gaming Motherboard with Core Boost and unlock the true potential of your multicore processor. With its premium layout, advanced digital power design, and support for more cores, this motherboard provides better performance and a seamless computing experience.

Specifications:

Chipset INTEL Z790
CPU SUPPORT Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics 1x HDMIâ„¢
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz
EXPANSION SLOT 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS DisplayPort 1.4
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port,
HD Audio Connectors
HDMIâ„¢ 2.1 Port
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2×2 20Gbps Type-C
Wi-Fi / Bluetooth Antenna
Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX
243.84mmx304.8mm
Warranty 3 Years
