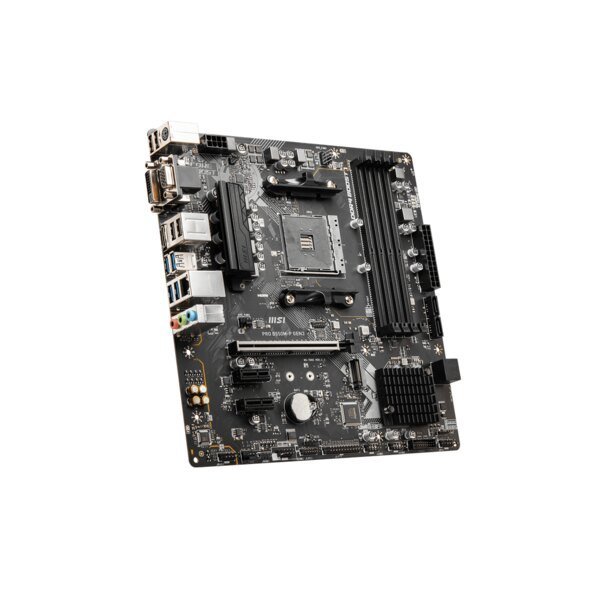

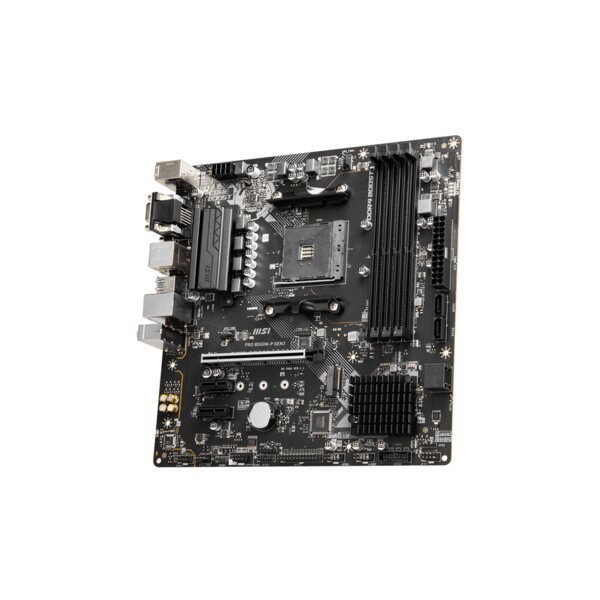

MSI PRO B550M-P GEN3

8,728.81

Brand:
MSI

Features:

  • Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Powerful Design: Core Boost, Digital PWM IC, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
  • MSI Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Available on backorder

+
  •  Size Guide

    Size Guide

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    2XS 32 26 32
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

  •  Delivery & Return
    Goods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.

    Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.

    Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
  ... people are viewing this right now

  Share
Guaranteed Safe CheckoutTrust

MSI PRO B550M-P GEN3

Specification:

CPU Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors
Chipset AMD® B550 Chipset
Memory
  • 4x DDR4 memory slots, supporting up to 128GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
  1. 1DPC 1R max speed 4400 MHz
  2. 1DPC 2R max speed 3733 MHz
  3. 2DPC 1R max speed 3866 MHz
  4. 2DPC 2R max speed 3466 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe 3.0 x16 slot (From CPU)
  • 2x PCIe 3.0 x1 slots (From AMD B550 chipset)
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz
  • 1x HDMI 1.4 port, supporting a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz
  • 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz
  • Maximum shared memory of 16 GB
SATA Ports 4x SATA 6Gb/s ports (From AMD B550 Chipset)
M.2 SSD Slots
  • 1x M.2 slot (Key M)
  • M2_1 slot (From CPU)
    Supports PCIe 3.0 x4
    Supports SATA 6Gb/s
    Supports 2242/ 2260/ 2280 storage devices
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio

LAN 1x Realtek® RTL8111H 1Gbps LAN controller
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
Internal USB Connectors
  • 1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset)
    Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From AMD B550 Chipset)
    Supports additional 4 USB 2.0 ports
Fan Connectors
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Serial port connector
  • 1x Parallel port connector
  • 1x TPM module connector
Jumpers 1x Clear CMOS jumper
LED Features
  • 1x 4-pin RGB LED connector
  • 4x EZ Debug LED
Back Panel Connectors
  • Keyboard / Mouse
  • VGA
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps
  • Type-A
  • LAN port
  • Audio connector
  • USB 2.0
  • DVI-D
  • HDMI
  • USB 3.2 Gen 1 5Gbps Type-A
I/O Controller NUVOTON NCT6795D-M Controller Chip
Hardware Monitor
  • CPU/ System/ Chipset temperature detection
  • CPU/ System fan speed detection
  • CPU/ System fan speed control
Form Factor
  • m-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS Features
  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.1, SMBIOS 2.8
  • Multi-language
Software MSI Center
Warranty 3 Years
