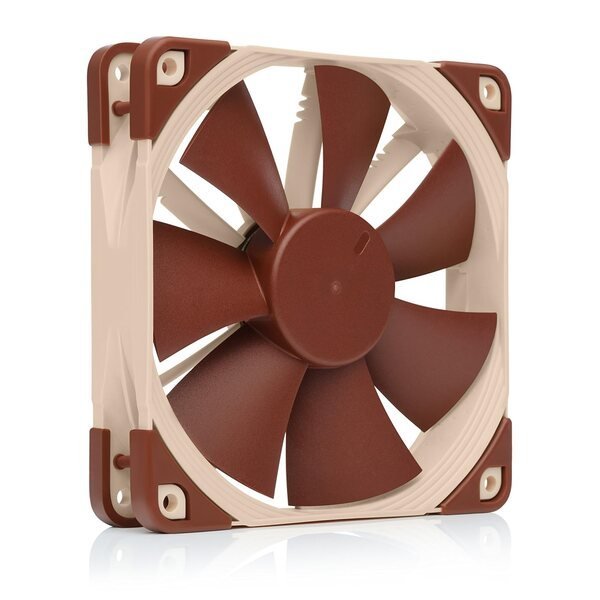

Noctua NF-F12 5V PWM Premium-Quality Quiet
₹2,202.54 ₹1,838.98
- Premium quiet fan, 120x120x25 mm, 5V, 4-pin PWM, max. 1500 RPM, max. 22.4 dB(A), >150,000 h MTTF
- Award-winning 120x25mm Focused Flow design for superior quiet cooling performance
- 5V 4-pin PWM version with polarity protection for 5V applications with PWM speed control
- USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones
- Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connection to proprietary fan headers
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
Noctua NF-F12 5V PWM Premium-Quality Quiet
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.
Specifications:
 Model Name |  NF-F12-5V-PWM |
  FAN Specification | |
 Size |  120x120x25 mm |
 Mounting hole spacing |  105×105 mm |
 Connector & pin-configuration |  4-pin PWM |
 Bearing |  SSO2 |
 Blade geometry |  Heptaperf™ |
 Frame technology |  Focused Flow™ |
 Rotational speed (+/- 10%) |  1500 RPM |
 Min. rotational speed @ 20% PWM (+/-20%) |  300 RPM |
 Airflow |  93,4 m³/h |
 Acoustical noise |  22,4 dB(A) |
 Static pressure |  2,61 mm H₂O |
 Input power (typical) |  0,65 W |
 Input power (max.) |  0,75 W |
 Input current (typical) |  0,13 A |
 Max. input current |  0,15 A |
 Operating voltage |  5 V |
 MTTF |  > 150.000 h |
 Scope of delivery | 30cm extension cable NA-AV1 anti-vibration mounts USB power adaptor cable OmniJoin adaptor set Fan screws |
 Warranty |  6 Years |
