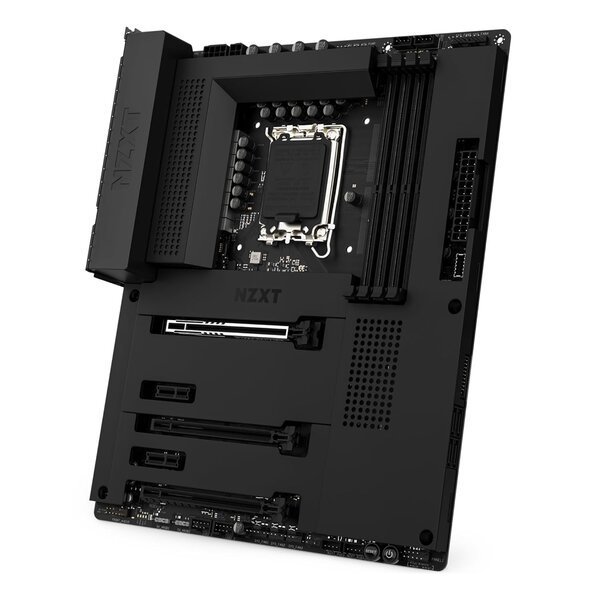

NZXT N7 Z790 Motherboard – Intel Z790 Black
₹40,677.12 ₹30,254.24

- 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB
- Full cover in black or white with integrated heat spreader for the top-most M.2 slot

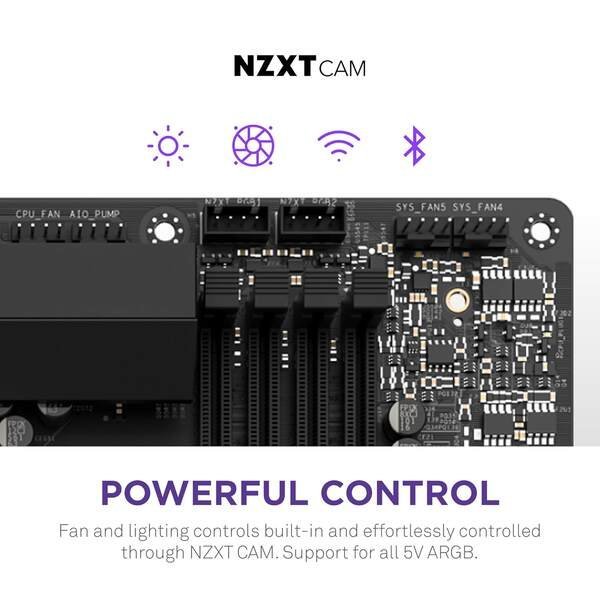

- Digital RGB lighting control through CAM for numerous preset and custom modes
- Convenient fan profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout for optimal setup
- Compatible with Intel® 14th, 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
- Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.3
- Three M.2 connectors for storage devices
- Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0
- 8-channel high-definition audio
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
NZXT N7 Z790 Motherboard – Intel Z790 Black

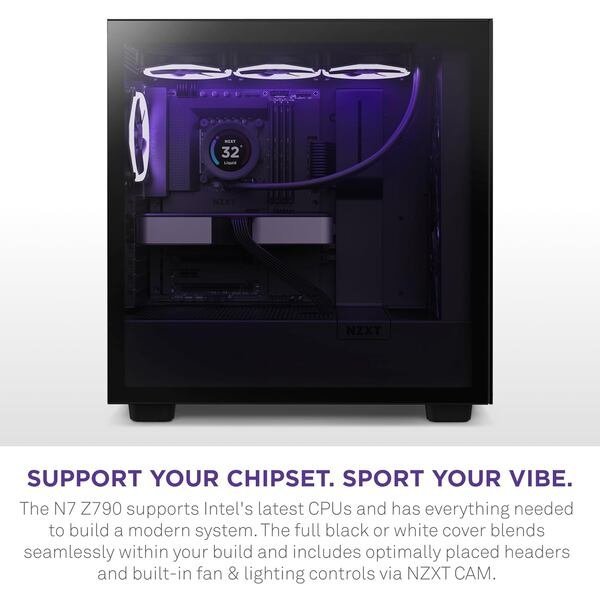

The N7 Z790 supports Intel’s latest CPUs and has everything needed to build a modern system. The full black or white cover blends seamlessly within your build and includes optimally placed headers and built-in fan & lighting controls via NZXT CAM.

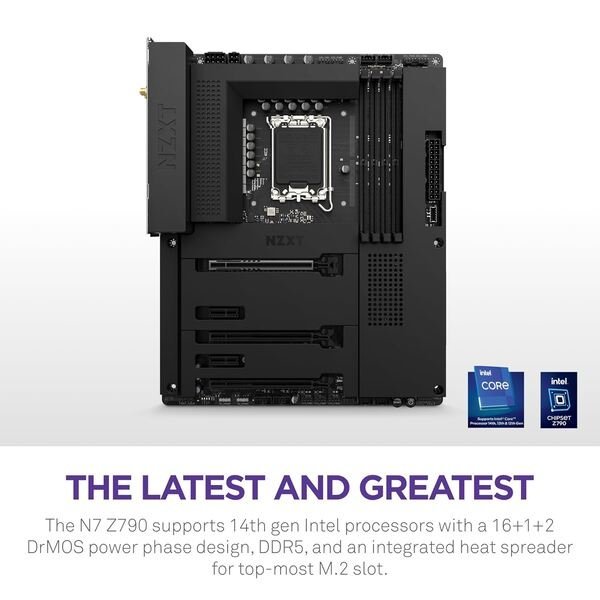

The Latest and Greatest
The N7 Z790 allows for a great look without sacrificing the build experience with an integrated rear I/O and optimally placed headers.

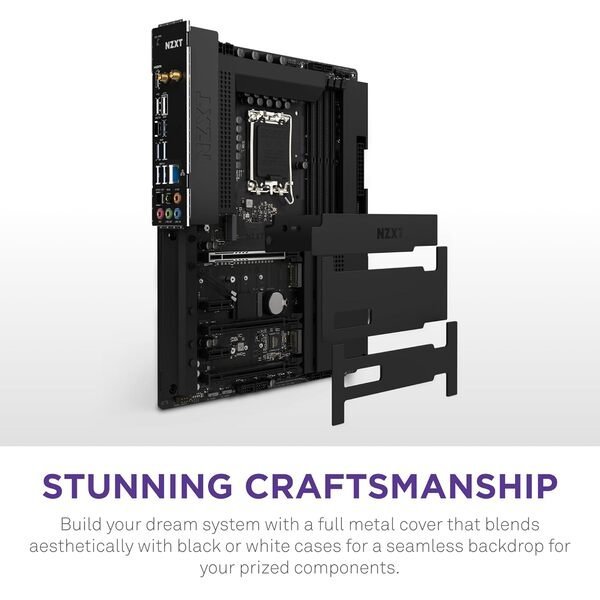

Stunning Craftsmanship
Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your prized components.
Specifications:
 CPU & Socket | |
Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors | Intel® Core™ Processors. Please refer to CPU support list. |
Intel® Hybrid Technology | Supported |
Turbo Boost Max 3.0 Technology | Supported |
Intel® Thermal Velocity Boost (TVB) | Supported |
Intel® Adaptive Boost Technology (ABT) | Supported |
 Wireless | |
Dual Band Wi-Fi 6E | Supported |
Bluetooth | V5.2 |
 Audio | |
Realtek® | ALC1220 Codec |
 Memory | |
DIMM Slots | 4 |
Max Memory Support | 128GB, DDR5 |
Memory Architecture | Dual-Channel |
OC Frequency | 5000+(O.C.). Please refer to memory QVL. |
Intel® Extreme Memory Profile (XMP) 3.0 | Supported |
 Rear I/O | |
Wireless antenna SMA connectors | 2 |
HDMIâ„¢ port | 1 |
USB 2.0 | 2 |
USB 3.2 Gen 2×2 Type-C port | 1 |
USB 3.2 Gen 2 ports | 2 |
USB 3.2 Gen 1 ports | 3 |
Clear CMOS button | 1 |
LAN (RJ45) port | 1 |
Audio jacks | 5 |
Optical S/PDIF Out port | 1 |
 Expansion Slots | |
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode | 1 (Supports NVMe SSD as boot disks) |
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode | 2 (Supports NVMe SSD as boot disks) |
PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2) | 2 (Supports NVMe SSD as boot disks) |
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 | 1 |
 Internal I/O | |
24-pin ATX power connector | 1 |
8+4-pin ATX 12V power connector | 1 |
4-pin CPU_FAN connector | 1 |
4-pin AIO_PUMP connector | 1 |
4-pin SYS_FAN connectors | 5 |
NZXT RGB LED connectors | 4 |
5V ARGB LED connector | 2 |
USB 2.0 header (Up to 4 USB 2.0 ports) | 2 |
USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports) | 1 |
USB 3.2 Gen2x2 front panel header (For USB Type-C) | 1 |
Front panel audio connector | 1 |
Power button | 1 |
Reset button | 1 |
POST LEDs | 4 |
 Storage | |
M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode) | 1 |
M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode) | 1 |
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode) | 1 |
SATA 6Gb/s ports | 4 |
Intel® Volume Management Device (VMD) | Supported |
NVMe SSD as boot disks | Supported |
 LAN | |
Realtek® | RTL8125BG 2.5G LAN |
 General | |
Operating System | Windows® 11/10 64-bit |
Form Factor | ATX |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
