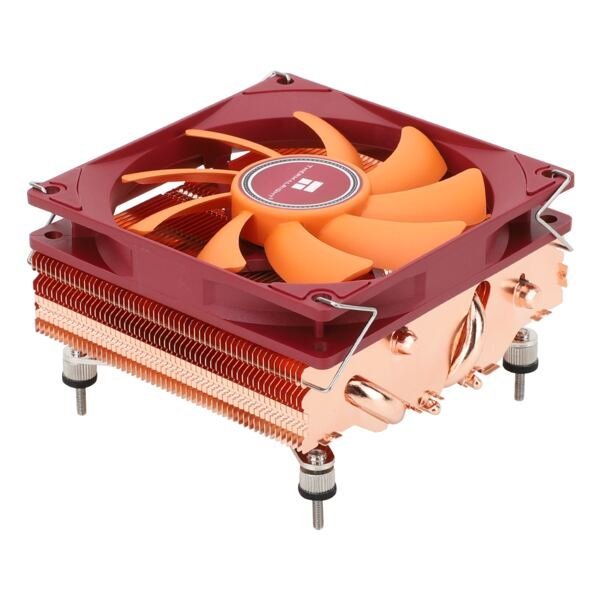

THERMALRIGHT AXP-90 X47 Full

- 【Low profile Design】Ultra-compact low-profile cooler with only 47mm total height. Radiator size: 97mm×92mm×32mm; Fan size: 92mm×92mm×15mm
- 【Better Heat Dissipation】The low-profile CPU cooler comes with 4 heat pipes and a 92mm PWM fan to make sure excellent heat transfer from the CPU. This heatsink offers small footprint
- 【Copper Base and PWM Fan】Its base is made of pure copper. So the heat conductivity is excellent. The 92mm PWM fan deliver Low-Noise for automatic speed control and extreme CPU cooling performance. Air Flow:42.58CFM; Noise Level: 22.4dB(A)
- 【Plating Anti-oxidation Protective Layer】Plating anti-oxidation protective layer surface treatment helps prevent corrosion, effectively utilize the air at the edge of the fan to improve overall heat dissipation

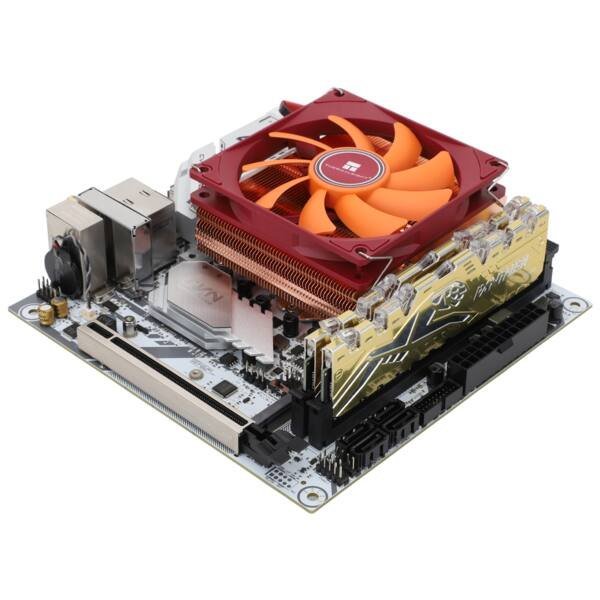

- 【Compatibility】Copper integrated push-down cpu cooler provides excellent cooling for the CPU and memory, also suitable for small computer case. Supports Intel LGA 1150/1151/1155/1156/1200/1700 and AMD AM4
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
THERMALRIGHT AXP-90 X47 Full
Specifications:
Dimension: L94.5 mm x W95 mm x H32 mm
Weight(With Fan): 520g
Heat pipes: 6mm heatpipe x 4 units
Fin: T = 0.3 mm;Gap=1.6 mm

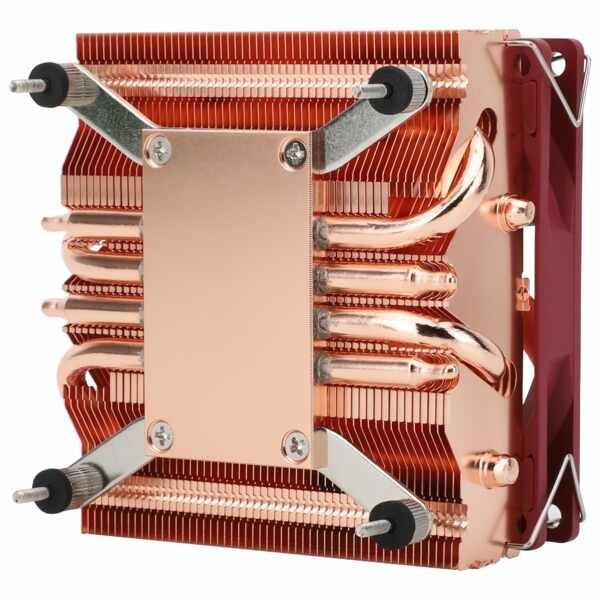

Copper Base:C1100 Pure Copper nickel plated
TL-9015R FAN Spec:
Dimension: L92 mm x W92 mm x H15 mm
Rated Speed: 2700 RPM±10% (MAX)
Noise Level: 22.4 dBA
Air Flow: 42.58 CFM (MAX)
Air Pressure: 1.33mm H2O (MAX)
Ampere: 0.18 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : HYDRAULIC Bearing
| 5 |
|
0 |
| 4 |
|
0 |
| 3 |
|
0 |
| 2 |
|
0 |
| 1 |
|
0 |
