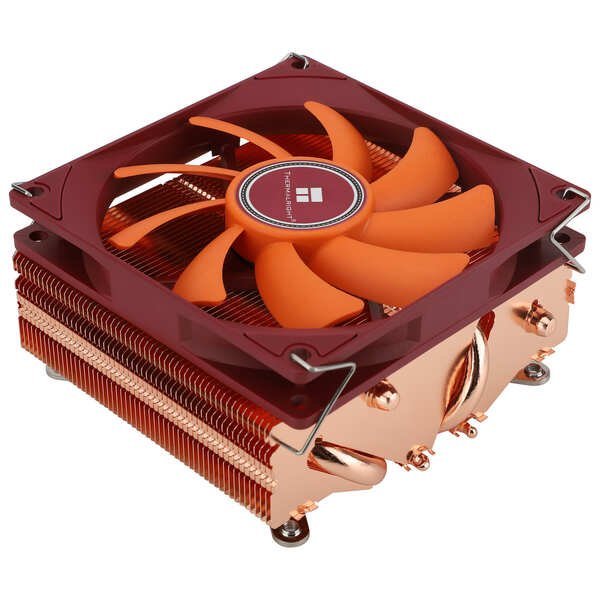

THERMALRIGHT AXP-90 X53 Full

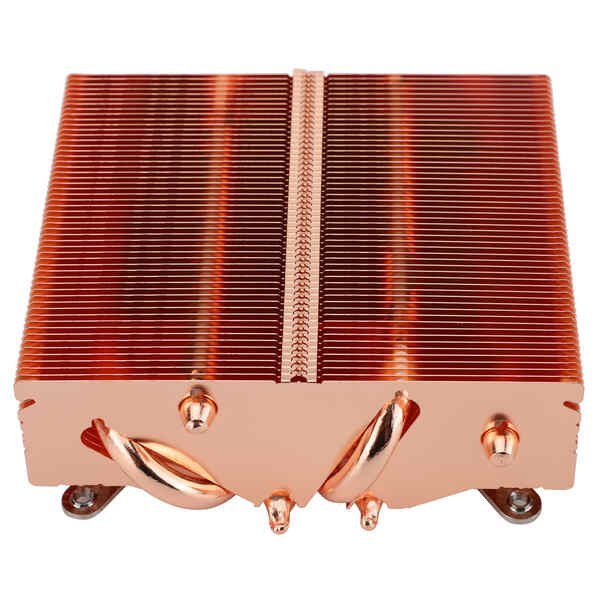

- 【Optimized Details】The main cpu cooler body of heat dissipation adopts Seiko micro-carved copper bottom + pure copper anti-oxidation process + fine fins, which reduces wind damage and can effectively increase the effect of heat dissipation in the case of stability.

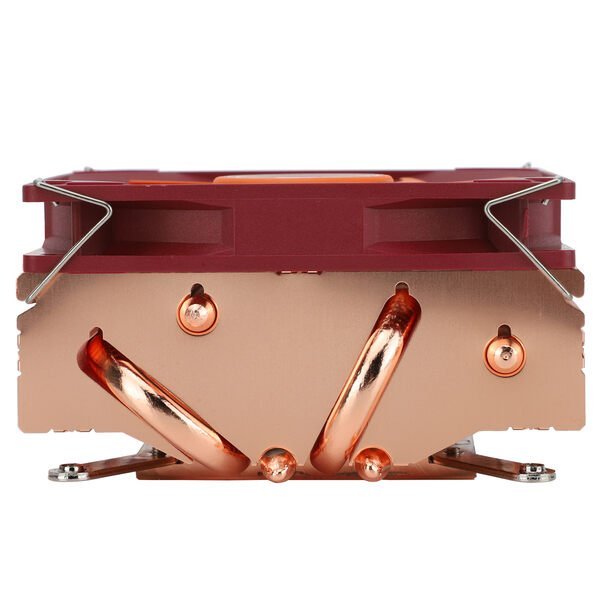

- 【AGHP technique】The 4x6mm heat pipe adopts the 4th generation technology of AGHP upgrade, Solve the Inverse gravity effect caused by vertical/horizontal orientation,with 2 soldered heat pipe fins, the heat transfer efficiency of the cooler heatsink is doubled, and the overall height is 53mm, which can be compatible with more small motherboards.

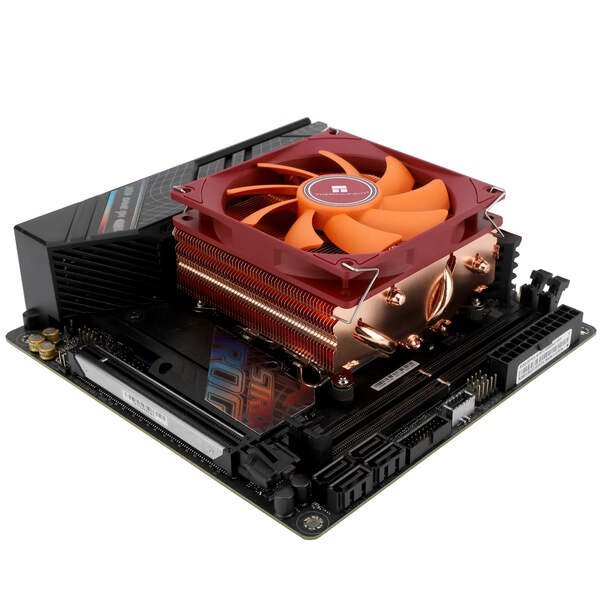

- 【53mm Height】The AXP90 X53 Full low profile cooler, combined with a 92mm PWM fan for automatic temperature control and ultra-quiet operation, and a total cooler height of just 53mm, makes it ideal for HTPC, ITX and small models with a small CPU cooler without any memory limitation worries.
- 【Broad Compatibility】The heatsink supports CPU slots: Intel: LGA1700/1150/1151/1155/1156/1200; AMD/AM4/AM5, for different platforms, the pc cooler is equipped with the corresponding metal mounting fasteners, which can be installed in conjunction with the manual or installation video.
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
THERMALRIGHT AXP-90 X53 Full
Technical Spec:
Heatsink Specifications:
Dimension:L94.5 mm x W95 mm x H38 mm
Weight(Without Fan):540g
Heat pipes:6mm heatpipe x 4 units
Copper Base:C1100 Pure Copper nickel plated
TL-9015R FAN Spec:
Dimension:L92 mm x W92 mm x H15 mm
Rated Speed:2700 RPM±10% (MAX)
Noise Level:22.4 dBA
Air Flow:42.58 CFM (MAX)
Air Pressure:1.33 mm H2O (MAX)
Ampere:0.18A
Connector:4 Pin (PWM Fan connector)
Bearing Type : S-FDB V2 Bearing
