THERMALRIGHT TL-B14 CASE FAN

Brand:

THERMALRIGHT

【Industrial grade case fans】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 1500RPM.

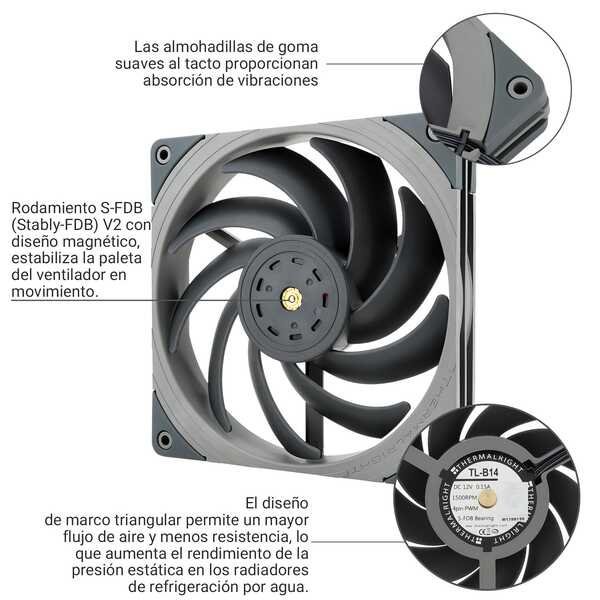

【High Precision Bearing】 The high precision S-FDB V2 bearings are of sealed construction, giving the fan a long durability, providing greater cooling performance while keeping the cpu fan noise at a minimum level and extending the fan’s service life.
【Process upgrading】The pc fan blade is formed, initially corrected, and then corrected again by a laser balancing machine with 3 dots of mud glue to address possible imbalances in the rotation of the fan. The red mud glue in the middle of the cooling fan is used to upgrade dynamic balance of fan and make its performance better (Referred to as the three-dimensional dynamic balance)
【Dimensions of PC Fan】 Size: 140*140*25mm, Speed: 1500RPM±10%, Noise ≤27.6dBA Connector: 4pin pwm, Current: 0.15A, Air Pressure: 2.35mm H2O (MAX), Air Flow: 82.5CFM, Higher air flow for improved cooling performance.The triangular symmetrical back frame design increases the effective airflow area of the cooler fan and enhances the pressure strength of the fan.
【Perfect Match】The PC cooling fan can be used not only as a case fan, but is also suitable for use with a cpu cooler to create a cooling effect together, which can take away the dry heat from the case and the high temperature generated by the CPU in operation, allowing for maximum cooling; Ideal for cases, radiators and CPU coolers.

Size Guide
Size Guide
DRESSES
T-SHIRT
BOTTOMS

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

2XS 32 26 32

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.
Delivery & Return
Goods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.

Size	Chest	Waist	Hips
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
2XL	44	38	44
All measurements are in INCHES and may vary a half inch in either direction.

Size	Chest	Waist	Hips
2XS	32	26	32
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
All measurements are in INCHES and may vary a half inch in either direction.

Size	Chest	Waist	Hips
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
2XL	44	38	44
All measurements are in INCHES and may vary a half inch in either direction.

... people are viewing this right now

Compare

Guaranteed Safe Checkout

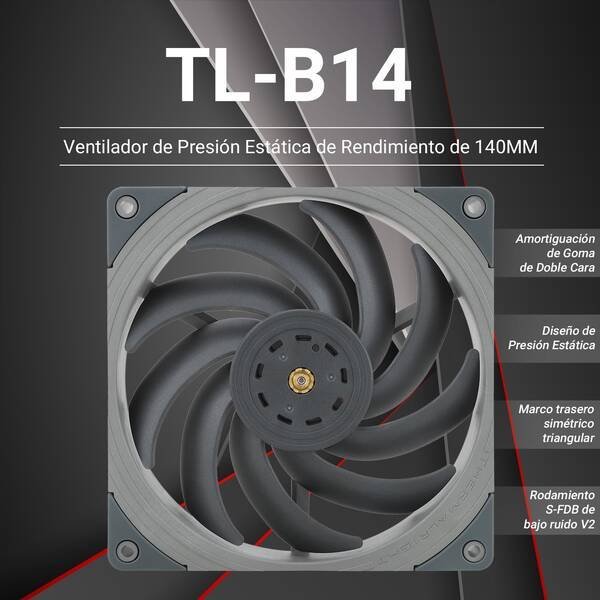

THERMALRIGHT TL-B14 CASE FAN

The high precision S-FDB V2 bearings are of sealed construction, giving the fan a long durability, providing greater cooling performance while keeping the cpu fan noise at a minimum level and extending the fan’s service life.

SPECIFICATIONS:

Dimension: L140 mm x W140 mm x H25 mm
Weight: 245 g
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 27.6 dBA (MAX)
Air Flow: 82.5 CFM (MAX)
Air Pressure: 2.35 mm H2O (MAX)
Ampere: 0.15 A
Connector: 4 PIN PWM
Bearing Type: S-FDB V2 Bearing
