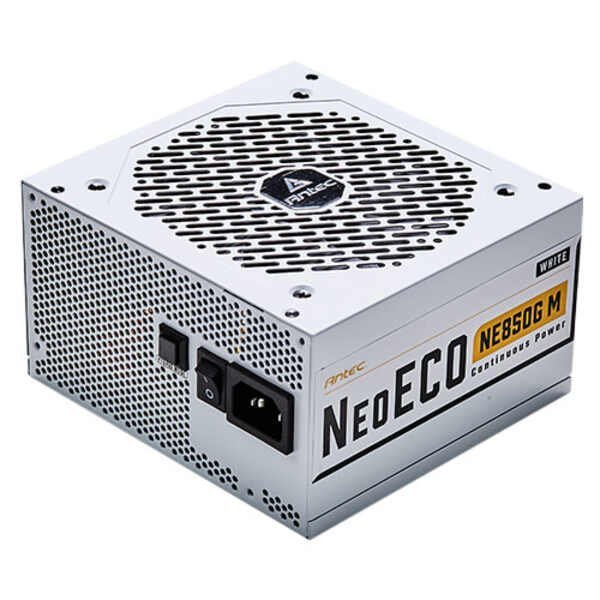

Antec NE850G M 850 Watts 80 Plus Gold Power Supply(WHITE)
Original price was: ₹12,372.88.₹9,567.80Current price is: ₹9,567.80.
Features
NEoeco gold modular WHITE 850W
- 850W Continuous Power™ – Guaranteed 850W of Continuous Power from Antec
- 100% Modular – Improves airflow and reduces clutter
- 80 PLUS® Gold certified -Reduce your electricity bill
- PhaseWave™ Design – A server-class LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 7-year warranty

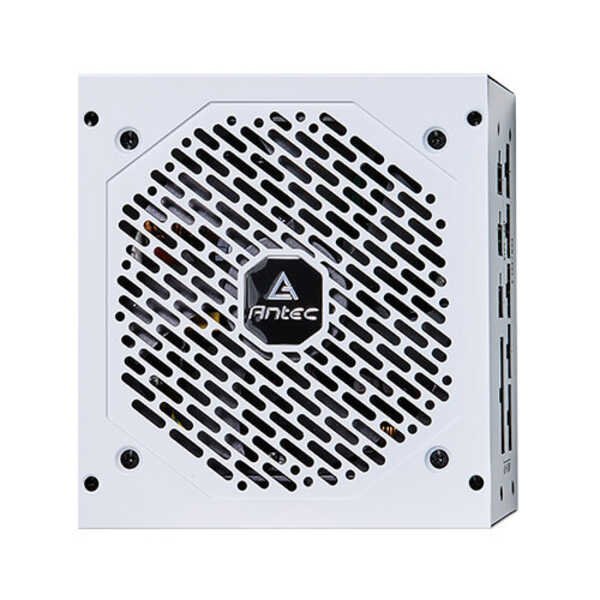

- 120mm Silent Fan – Whisper-quiet high-quality fluid-dynamic bearing fan with long life time
- Zero RPM Manager – An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V – Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket – For possible future MBU connectors
- ATX 12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Out of stock
Antec NE850G M 850 Watts 80 Plus Gold Power Supply(WHITE)
Specifications
| MODEL | NE850G M |
| Type | ATX 12V 2.4 |
| Modular | Fully |
| Dimension | 150(L) x 140(W) x 86(H) |
| Input Voltage | 100-240 VAC |
| Input Current | 10A MAX |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up To 92% |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Gold |

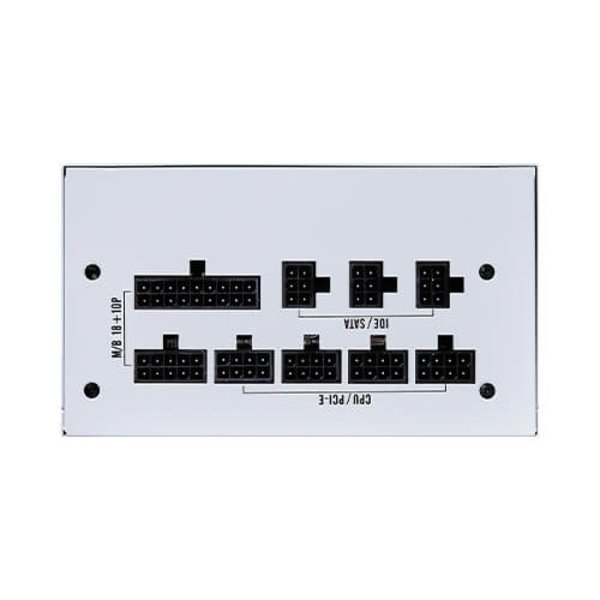

| Connector | 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V 6 x 8(6+2) Pin PCI-E 10 x SATA 5 x Molex 1 x FDD |
| Net Weight | 1.38 kgs |
| Gross Weight | 2.55 kgs |
| Warranty | 7 Years |
