Asrock Z790 PG-ITX/TB4
₹53,015.25 ₹33,133.90
FEATURES
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 10+1+1 Phase Power Design, SPS for VCore
- 2 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio
- 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 2 Hyper M.2 (PCIe Gen4x4), 3 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 6 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 2 USB 2.0 (Front)
- Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
Asrock Z790 PG-ITX/TB4
FEATURES
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 10+1+1 Phase Power Design, SPS for VCore
- 2 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio
- 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 2 Hyper M.2 (PCIe Gen4x4), 3 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 6 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 2 USB 2.0 (Front)
- Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth
Unique Features | Superb Productivity – PCIe Gen5 (Graphic) – Dual Channel DDR5 – USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – 10+1+1 Power Phase, 105A SPS for VCore with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity – Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6EModule – Killer DoubleShot™ Pro EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
CPU | – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
Chipset | Intel® Z790 |
Memory | – Dual Channel DDR5 Memory Technology – 2 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) – Max. capacity of system memory: 64GB* – Supports Intel® Extreme Memory Profile (XMP) 3.0 |
BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz – 2 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz** |
Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – Individual PCB Layers for R/L Audio Channel – Impedance Sensing on Rear Out port – Nahimic Audio |
LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Killer E3100X – Supports Killer LAN Software – Supports Killer DoubleShot™ Pro |
Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 3 x SATA3 6.0 Gb/s Connectors |
RAID | – Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
USB | – 2 x USB4 Thunderbolt™ 4 Type-C (Rear) – 1 x USB 3.2 Gen2x2 Type-C (Front) – 6 x USB 3.2 Gen2 Type-A (Rear) – 2 x USB 3.2 Gen1 (Front) – 2 x USB 2.0 (Front) * All USB ports support ESD Protection |
Connector | – 1 x RGB LED Header* – 1 x Addressable LED Header** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 1 x Chassis Fan Connector (4-pin)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 1 x Clear CMOS Button |

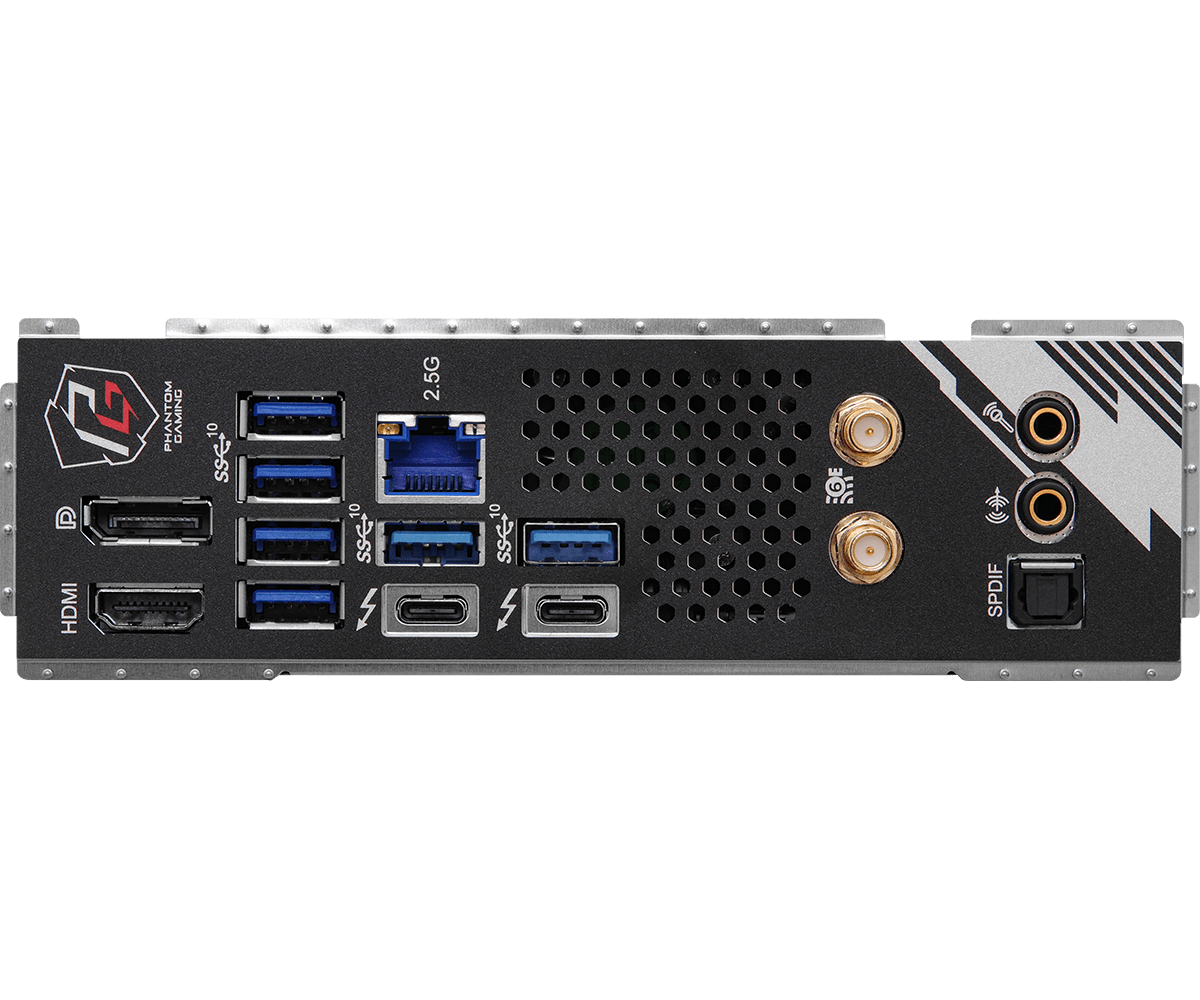

Rear I/O Panel | – 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 2 x USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 6 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 1 x RJ-45 LAN Port – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
Software & UEFI | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – Killer Control Center – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
Accessories | – 1 x User Manual – 2 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 2 x Thermal Pads for M.2 SSD – 3 x Screws for M.2 Sockets |
Form Factor | – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm – 10 Layer PCB |
OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
