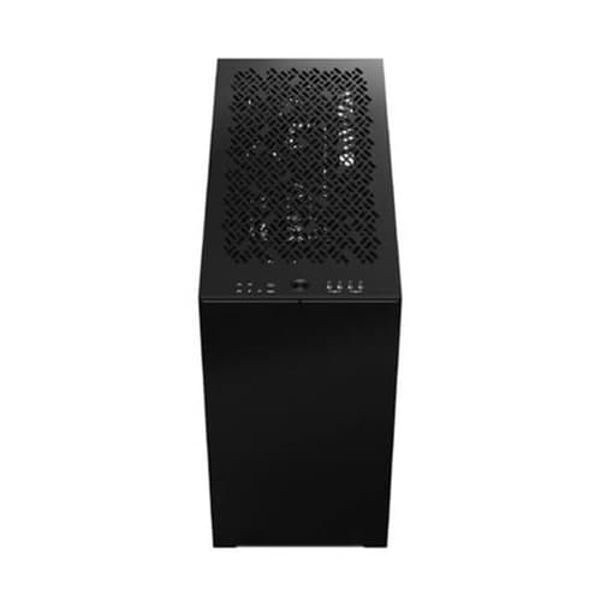

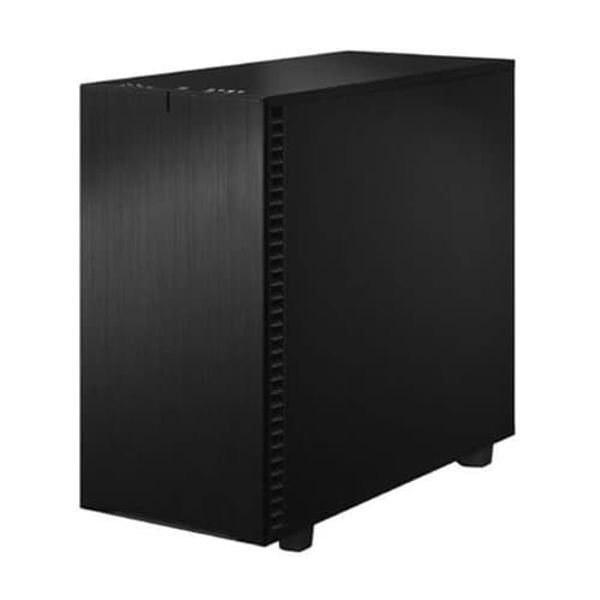

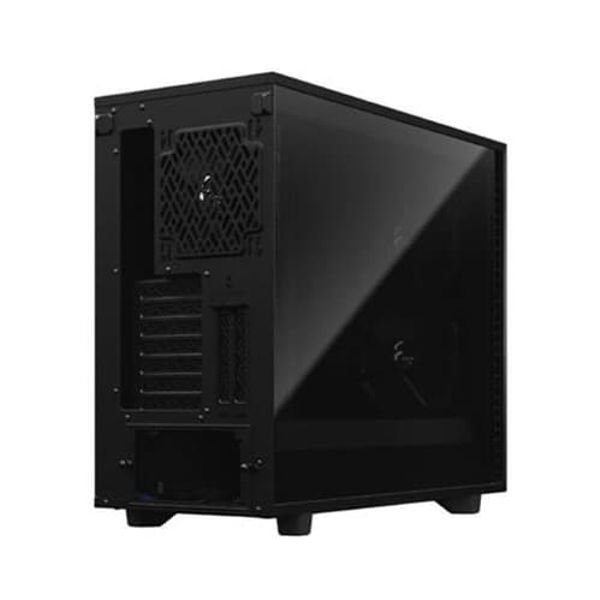

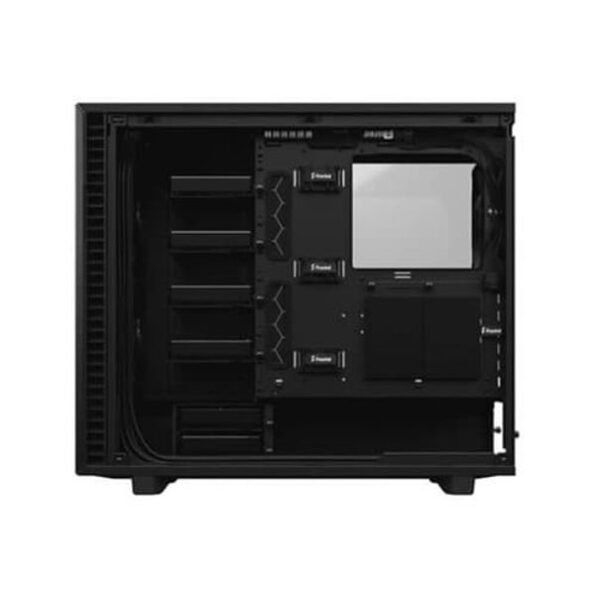

Define 7 Black Solid
Define Series sound dampening with ModuVent™ technology
Optimized for high airflow and silent computing
Side and front panels are lined with industrial-grade sound dampening material
The perfect balance of capacity and efficiency
Smaller than the usual ATX case, the Define C and its optimized interior provides the perfect base for users of all kinds. The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step.
Key features
- Define Series sound dampening with ModuVent™ technology for silent operation in a compact micro ATX form factor
- Optimized for high airflow and silent computing
- Side and front panels are lined with industrial-grade sound dampening material
- Flexible storage options with room for up to five drives
- Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level
- Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust
Specifications
-
3.5″/2.5″ Universal drive brackets
6 included, 14 positions total
-
Dedicated 2.5″ drive brackets
2 trays included, 4 positions total
-
5.25” drive mounts
1
-
Expansion slots
7 + 2
-
Front ports
1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
-
Total fan mounts
9 x 120/140 mm
-
Front fan
3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
-
Top fan
3 x 120/140 mm
-
Rear fan
1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
-
Bottom fan
2 x 120/140 mm
-
Dust filters
Top, 2 x front, full length bottom
-
Fixed velcro straps
Yes
-
Cable routing grommets
Yes
-
Captive thumbscrews
HDD brackets, SSD brackets, PSU bracket
-
Left side panel
Industrial sound-damped steel
-
Right side panel
Industrial sound-damped steel
Compatibility
-
Motherboard compatibility
E-ATX (max 285 mm) / ATX / mATX / mITX
-
Power supply type
ATX
-
PSU max length
250 mm (with HDD cage installed)
-
GPU max length
Storage layout: 315 mm – Open layout: 491 mm (467 mm w/ front fan)
-
CPU cooler max height
185 mm
-
Front radiator
Up to 360/280 mm
-
Top radiator
Up to 360/420 mm
-
Rear radiator
120 mm
-
Bottom radiator
Up to 240/280 mm
-
Cable routing space
30 mm
-
Vertical GPU Support (with Flex VRC-25)
65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
Other
-
Warranty
2 Years
-
Package contents
Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6)
-
EAN
Black – 7340172702191. Gray – 7340172702252. White – 7340172702276
-
UPC
Black – 843276102197. Gray – 843276102258. White – 843276102272
-
JAN
Black – 4537694275842. Gray – 4537694275903. White – 4537694276184
-
Product code
Black – FD-C-DEF7A-01. Gray – FD-C-DEF7A-07. White – FD-C-DEF7A-09
