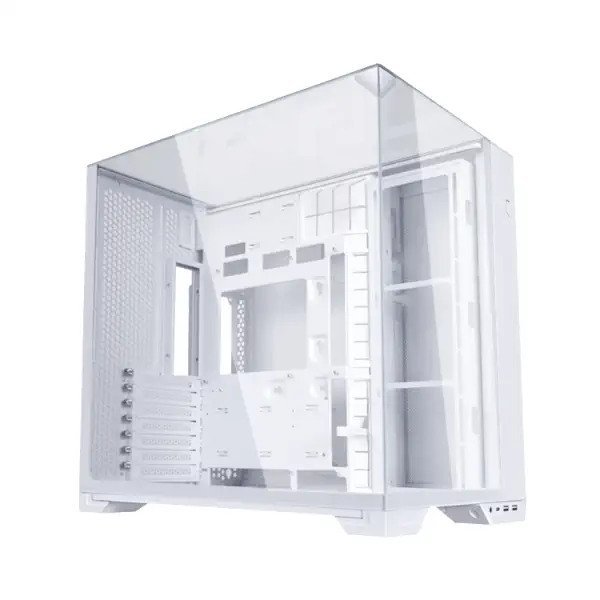

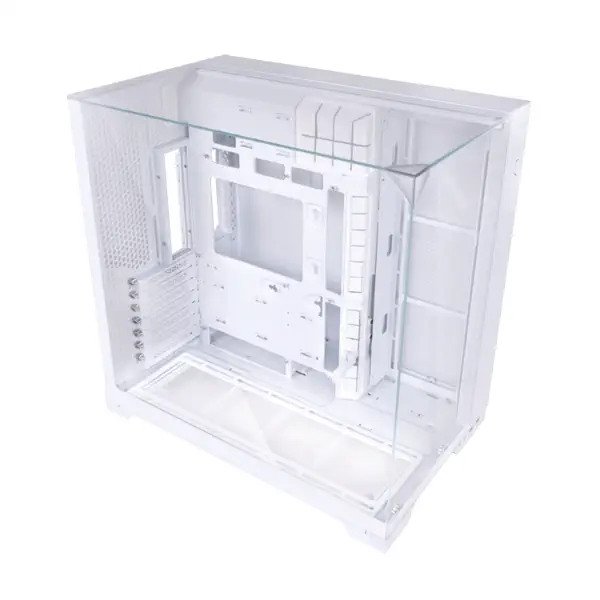

LIAN LI O11 Vision Compact White

Features:

Two top panel options: mesh or tempered glass
Vision mode with tempered glass for an uninterrupted view of components
Mesh mode with fan bracket for additional radiator or fan support
Supports up to 11 fans and a maximum of 360mm large radiator
Compatible with back-connect ATX motherboards
Hidden AIO tube design for a streamlined appearance
Dual-chamber layout with cable management compartment and cable holders

Unobstructed Hardware Showcase

O11 VISION COMPACT enhances your setup with its unique swappable top panels and concealed AIO tubing design, giving your chassis a standout and elegant look.

Brushed aluminiun finish
Inner Corner Silkscreen
Swappable Mesh/Glass Panels
3mm Top Tempered Glass
4mm Tinted Side and Front Tempered Glass
Concealed Cables: Simple and Elegant

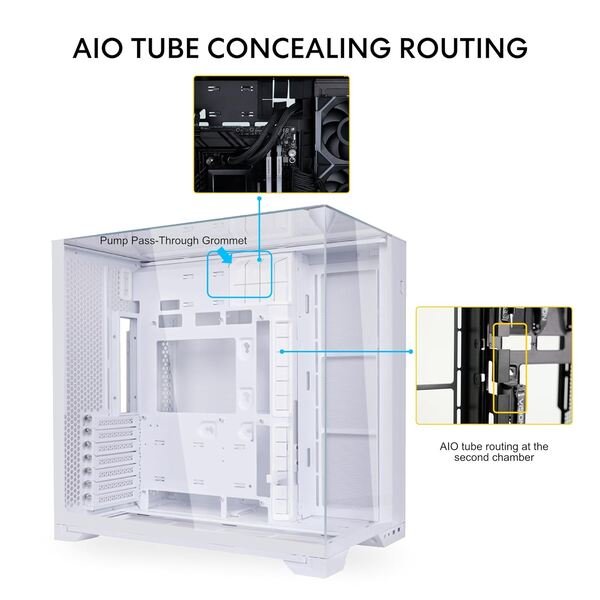

Beside the rear pass-through grommet, an ATX EPS cover provides a clean BTF look. Long vertical grommets run the right side of the motherboard. The large top grommet can pass a CPU pump block, and can be removed/re-inserted for maximum clearance. Detaching the cable cover, AIO tubes slide into provided channels for a cleaner look.

Improve Intake With Reversible Bracket

The side radiator bracket can be removed for easy radiator and fan installation. Remove the thumbscrew on the right-side interior, and the bracket can be removed. The bracket can also be reversely installed for different setup configurations.

Add to wishlist

SKU: LIAN LI O11 Vision Compact White Categories:Cabinet, MID TOWER Tag:cabinet Brand: Lian li

Description
Reviews (0)

LIAN LI O11 Vision Compact White

Easy Cable Management

Like the O11 VISION, the O11 VISION COMPACT also comes with 2 dual-layer cable clips that slide out of their SSD-style mounting points. The clip can hold the bulk of PSU cables, while the Velcro strap on top is ideal for fan cable management. 6 additional Velcro straps, 2 above and 4 below, tidy up cables to the motherboard and storage.

Extended Room

The PSU mounting bracket, carrying over the design from the O11 VISION, protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.

SPECIFICATIONS:

Model	O11 VISION COMPACT
Model No	O11VPW
Color	White
Dimension	(D)447.5mm x (W)287.5mm x (H)446.4mm
Material	Steel, 4.0mm tempered glass, 3.0mm tempered glass, Aluminium
Motherboard Support	Back-Connect ATX/ E-ATX (Under 280mm) / ATX / Micro-ATX / Mini-ITX
Case Type	Tower Chassis
Expansion Slot	6+1
Storage	Behind MB Tray: 2 x 2.5″ SSD Hard drive cage: 2 x 3.5″ HDD or 2.5″ SSD
Gpu Length Clearance	408mm (Max.)
Cpu Cooler Height Clearance	164mm (Max.)
PSU Support	ATX (Under 220mm)
Fan Support	Top: 120mm x 3 or 140mm x 2 Side: 120mm x 3 Bottom: 120mm x 3 Rear: 120mm x 2
Radiator Support	Top: 240mm x 1 or 280mm x 1 or 360mm x 1 Side: 240mm x 1 or 360mm x 1 Bottom: 240mm x 1 or 360mm x 1
I/O Ports	Power Button x 1 USB 3.0 x 2 USB 3.1 TYPE-C x 1 Audio x 1
Dust Filter	Bottom × 1
Warranty	1 Year
