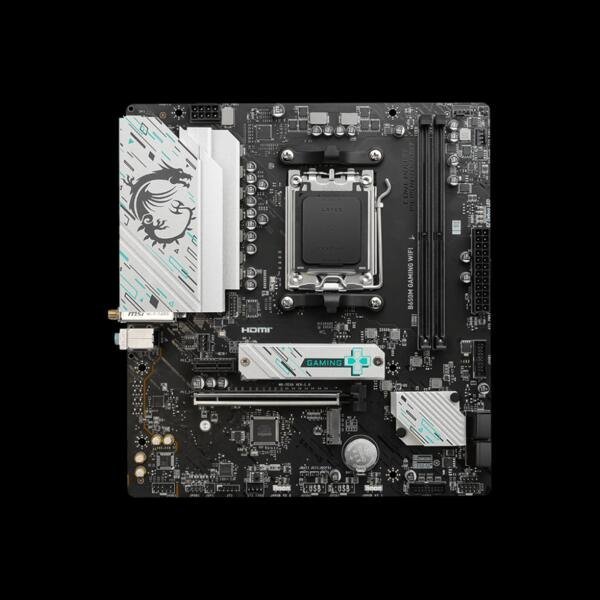

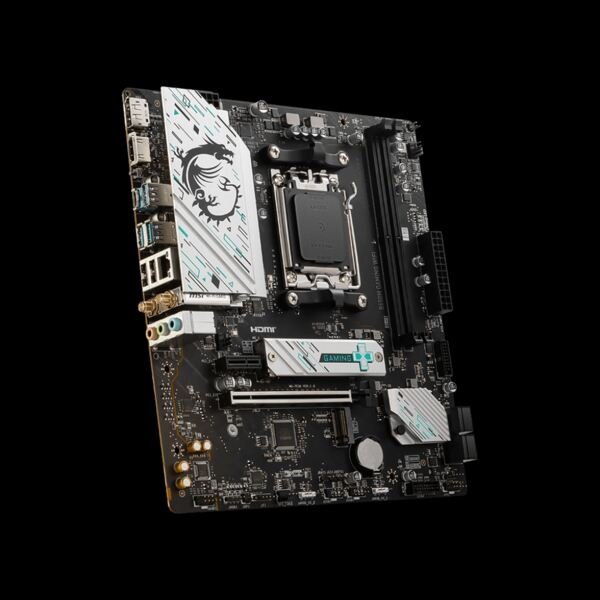

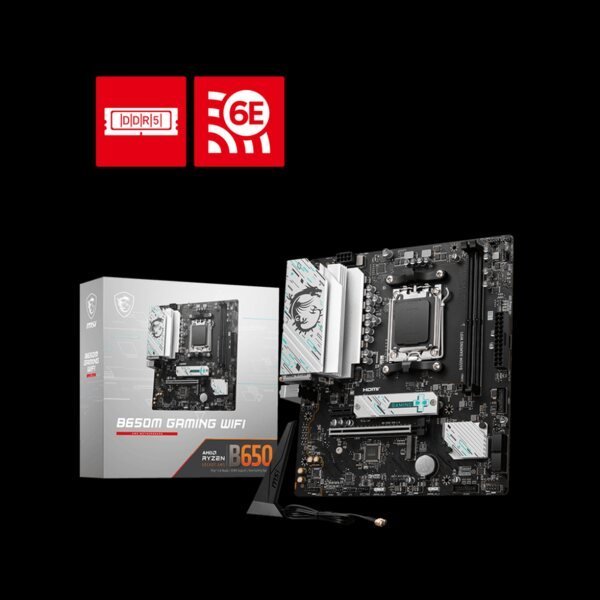

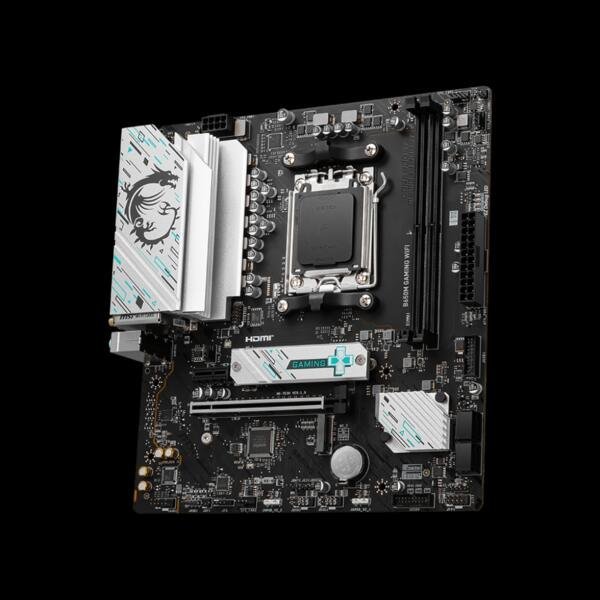

MSI B650M GAMING WIFI
MSI B650M GAMING WIFI - Image 2
MSI B650M GAMING WIFI - Image 3
MSI B650M GAMING WIFI - Image 4
MSI B650M GAMING WIFI - Image 5

MSI B650M GAMING WIFI

Original price was: ₹18,880.00.Current price is: ₹11,350.00.

Features:

  • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000 Series Processors
    Unparalleled Performance：5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：2*SMD DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：HDMI , D-sub
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
SKU: MSI B650M GAMING WIFI Categories:, Tags:, , Brand:

MSI B650M GAMING WIFI

Descripation

Durable Performance
GIGABYTE Ultra Durableâ„¢ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage

Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Specifications:

 Model Number  B650M GAMING WIFI
 CPU  AMD Socket AM5, support for:
AMD Ryzenâ„¢ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
 Chipset  AMD B650
 Memory  Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
 Onboard Graphics  Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
 Audio  Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
 LAN  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
 Wireless Communication module  AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
– WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
– BLUETOOTH 4.2
– Support for 11ac wireless standard
(Actual data rate may vary depending on environment and equipment.)
 Expansion Slots  CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
 Storage Interface  CPU:
– 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
 USB  CPU:
– 2 x USB 3.2 Gen 1 ports on the back panel
– 1 x USB 2.0/1.1 port on the back panel
Chipset:
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
the internal USB header)
Chipset+USB 2.0 Hub:
– 2 x USB 2.0/1.1 ports available through the internal USB header
 Internal I/O Connectors  1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
 Back Panel Connectors  4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x HDMI port
1 x RJ-45 port
Š 3 x audio jacks
 I/O Controller  iTE® I/O Controller Chip
 H/W Monitoring  Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
 BIOS  1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
 Unique Features  Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
 Bundled Software  Norton® Internet Security (OEM version)
LAN bandwidth management software
 Operating System  Support for Windows 11 64-bit
Support for Windows 10 64-bit
 Form Factor  Micro ATX Form Factor; 24.0cm x 22.5cm
 Warranty  3 Years
