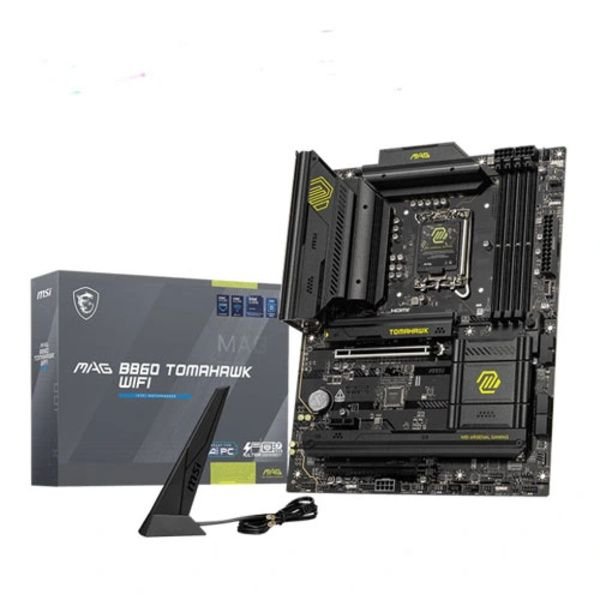

MSI MAG B860 Tomahawk WIFI ATX Motherboard

MSI MAG B860 Tomahawk WIFI ATX Motherboard

Original price was: ₹42,999.00.Current price is: ₹23,789.00.

Features:

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience

SKU: MSI MAG B860 Tomahawk WIFI ATX Motherboard Categories:ATX Motherboard, Motherboard Tag:ATX MOTHERBOARD Brand: MSI

Description
Reviews (0)

MSI MAG B860 Tomahawk WIFI ATX Motherboard

Specification

Motherboard
Platform	INTEL
Socket	LGA1851
Cpu Type	Core Ultra
Chipset	B860
Memory Speed	up to 9200+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand website.
Graphics Port	1x HDMI,1x DisplayPort,1x Type-C DisplayPort
Expansion Slots	2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) *PCI_E3 slot will run at x2 speed when installing PCIe device in PCI_E2 slot.
Wireless Networking	WiFi 7,Bluetooth 5.4
Back Panel I/O Ports	Clear CMOS Button DisplayPort USB 2.0 (Flash BIOS Port) 5G LAN USB 10Gbps Type-A Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI™ USB 2.0 USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth S/PDIF-OUT
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	ATX
Warranty	3 Years
