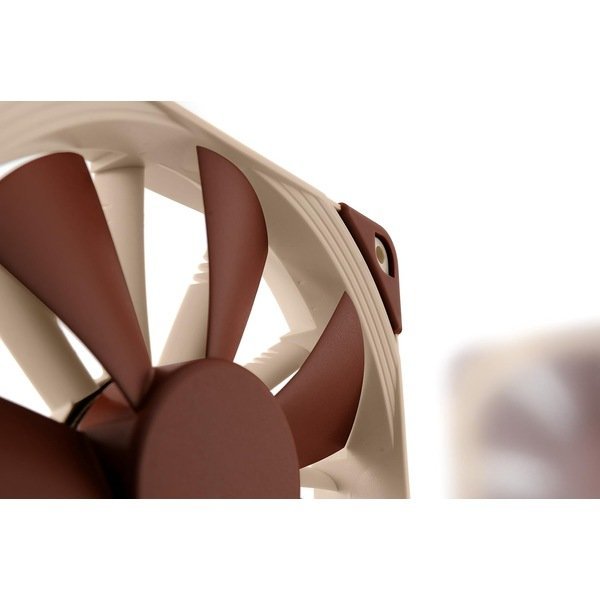

Noctua NF-F12 PWM, Premium Quiet Fan
₹1,838.98
- Premium quiet fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1500 RPM, max. 22.4 dB(A), >150,000 h MTTF
- Award-winning 120x25mm fan with Focused Flow frame for high static pressure and superior quiet cooling performance
- Ideal for CPU heatsinks (e.g. Noctua NH-U12(S) series) and water cooling radiators, perfect replacement fan for loud all-in-one (AIO) coolers
- 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, broad 300-1500rpm speed range (1200rpm max. with supplied Low-Noise Adaptor)
- Includes anti-vibration mounts, fan screws, Low-Noise Adaptor, extension cable and y-cable for running two PWM fans on the same header
Available on backorder
Noctua NF-F12 PWM, Premium Quiet Fan
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6-year manufacturer’s warranty.
Specifications:
| Size | 120x120x25 mm |
| Mounting hole spacing | 105×105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | Heptaperf™ |
| Frame technology | Focused Flow™ |
| Rotational speed (+/- 10%) | 1500 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Airflow | 93,4 m³/h |
| Airflow with L.N.A. | 74,3 m³/h |
| Acoustical noise | 22,4 dB(A) |
| Acoustical noise with L.N.A. | 18,6 dB(A) |
| Static pressure | 2,61 mm H₂O |
| Static pressure with L.N.A. | 1,83 mm H₂O |
| Max. input power | 0,6 W |
| Max. input current | 0,05 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 Years |
Related Products
- 【Industrial grade case fans】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 2150RPM.
- 【High Precision Bearing】 The high precision S-FDB bearings are of sealed construction, giving the fan a long durability, providing greater cooling performance while keeping the cpu fan noise at a minimum level and extending the fan’s service life.
- 【Process upgrading】The pc fan blade is formed, initially corrected, and then corrected again by a laser balancing machine with 3 dots of mud glue to address possible imbalances in the rotation of the fan. The red mud glue in the middle of the cooling fan is used to upgrade dynamic balance of fan and make its performance better (Referred to as the three-dimensional dynamic balance)
- 【Dimensions of PC Fan】 Size: 120*120*25.6mm, Speed: 2150RPM±10%, Noise ≤28.1dBA Connector: 4pin pwm, Current: 0.16A, Air Pressure: 2.87mm H2O (MAX), Air Flow: 69CFM, Higher air flow for improved cooling performance.The triangular symmetrical back frame design increases the effective airflow area of the cooler fan and enhances the pressure strength of the fan.
Available on backorder
HIGH STATI PRESSURE FAN
The PWM fan from Galahad AIO is now separately available. Experience extreme cooling with satisfying light effects controlled by one click via the controller or motherboard software.
Available separately from the GALAHAD AIO, ST120 is a PWM fan which operate between 800 and 1900 RPM, and deliver a maximum airflow of 69.17 CFM and air pressure of 2.6 mmH20, making them ideal fans for any AIOs capable of hosting 120mm fans. Integrated the fluid dynamic bearing, and extra magnetic support, the fan runs in silence and low vibrant. Equipped with ARGB LEDs that can be synchronized with the motherboard lighting software or managed via the included controller.
Available on backorder
- Air volume: 42.58CFM (MAX), Wind pressure: 1.33mm H2O (MAX), Speed: 2700RPM±10%, higher air flow to enhance cooling performance
- Noise level ≤22.4DBA, Ultra silent operation
- Designed for projects that requires cooling or ventilation; or as a replacement fan for various products
- 4-pin PWM version with excellent balance of performance and quietness, supports automatic motherboard speed control
- The case fan Square frame with excellent airflow and pressure performance: ideal for use on air cooling radiators
Available on backorder
Long Service Life:
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Innovative Design Enables Quiet and Efficient Ventilation:
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Available on backorder
Innovation within millimeters:
The acoustic sampling system emphasizes the balance between sound and performance through micron-level fine-tuning of the fan blades.
Optimization, based on the performance concept:
A triangular symmetrical backframe designed to increase the effective air outlet area by 23% and structural compressive strength by 20%
Present quality surrounds:
By using silicone corner pads for better shock absorption protection and a special-shaped frame protector to strengthen the support of the frame.
Experience an exhilarating performance:
Air pressure: 2.87mm H2O, Airflow: 69 CFM, Fan speed: 2150 RPM, Noise: 28.1DBA
Fearless:
Iron shell steel core bushing design, S-FDB V2.0 bearing support, made of PC+PBT servo-grade materials.
Available on backorder
- Adopt 9 fan blades golden tangent theory, and strive to achieve accurate performance output
- S-FDBV2.0 magnetic fluid dynamic bearing to solve the problem of fan blade jitter and vibration in lifting mode
- Micro-level fine-tuning of fan blades under the acoustic sampling system, emphasizing the balance of acoustic sensation and performance
- Double-sided silicone feet give better shock absorption protection
- Shaped line guard frame to strengthen the fan frame support strength
Available on backorder
FEATURES:
Brand – Thermalright,
Model – Thermalright TL-B12-S3 ARGB,
Type – Casing Fan, Speed Control – Controllable,
Bearing Type – S-FDB V2 Bearing,
Number of Fans – 3,
Fan Size (Height) – 120mm,
Speed – 2150 RPM,
Air Flow – 69 CFM (Max),
Air Pressure – 2.87 mm H2O (Max),
Noise – 28.1 dBA (Max),
Fan Connector – 4 Pin PWM,
Blade Qty – 9,
Lighting Effect – ARGB,
LED Connector – 3 Pin 5V,
Body Color -white.
Available on backorder
- [cpu cooler pwm fan size] size: 120*120*15mm, Speed: 1500RPM, noise24.1dBA; port: 4pin pwm, current: 0.15A, Wind pressure: 1.24mm H2O (MAX), air flow: 52CFM (MAX), Higher air flow can improve cooling performance.
- [Vibration-absorbing and low noise] The four corners of the fan are equipped with four vibrations absorbing pads, which pwm can reduce the vibration and friction caused by the rotation of the silent fan, perfectly reduce the noise and allow low-noise performance.
- [High-quality bearing] The well-designed superior S-FDB bearing can keep the noise of the fan at the lowest level, and provide the maximum cooling performance when needed, as well as extend the service life of case fan.
- [High-performance pc cooling fan] Automatically control the fan speed through 4pin PWM connection port on motherboard, the maximum speed can reach 1500RPM
- [Perfect match] The slim fan can not only be used as a case fan, but also suitable for downward coolers and Low Profile CPU Air Cooler to cooling down CPU jointly aim at maximized heat dissipation performance
Available on backorder
- High Performance Cooling Fan】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 2700RPM.
- 【Vibration damping and low noise】 Four vibration damping pads around the fan reduce the vibration friction caused by PC fan rotation, perfectly reducing noise and allowing low noise operation.
- 【Dimensions of Silent Fan】 Size: 92*92*15mm, Speed: 2700RPM±10%, Noise ≤22.4dBA Connector: 4pin pwm, Air Pressure: 1.33mm H2O (MAX), Air Flow: 42.58CFM (MAX), Higher air flow for improved cooling performance.
- [High-quality bearing] The well-designed superior liquid bearing can keep the noise of the fan at the lowest level, and provide the maximum cooling performance when needed, as well as extend the service life of fan.
- [Perfect match] The ultra-thin fan can not only be used as a case fan, but also suitable with downward coolers to cooling down CPU jointly aim at maximized heat dissipation performance; Ideal for cases, radiators and CPU coolers.
Available on backorder
- High Performance Cooling Fan】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 2200RPM.
- 【Vibration damping and low noise】 Four vibration damping pads around the fan reduce the vibration friction caused by PC fan rotation, perfectly reducing noise and allowing low noise operation.
- 【Dimensions of Silent Fan】 Size: 80*80*15mm, Speed: 2200RPM, Noise 23.3dBA Connector: 4pin pwm, wind pressure: 1.25mm H2O,Air Flow: 28.4CFM (MAX), Higher air flow for improved cooling performance.
- 【Quality Bearings】 Carefully developed, solving the problem of shaking fan blades in lifting mode with durability, quality S-FDB V2 bearings keep fan noise to a minimum while providing maximum cooling performance when needed and extending the life of the case fan.
- [Perfect match] The ultra-thin fan can not only be used as a case fan, but also suitable with downward coolers to cooling down CPU jointly aim at maximized heat dissipation performance; Ideal for cases, radiators and CPU coolers.
Available on backorder
- 【Fan Parameters】Model: TL-B6B, cpu fan size: 60*60*25mm, rated speed 3200RPM±10%. Noise ≤ 20.17dB (A), fan air flow: 16.17CFM, air pressure: 1.6mm H2O, current 0.13A, voltage DC 12V, connection interface: 4PIN PWM,Higher air flow for improved cooling performance.
- 【High Air Volume Heat Dissipation】The cooling fan is 7 fan blades, which has a high air volume, which can provide strong heat dissipation, prevent the case temperature from overheating, and ensure the stable operation of the computer.
- 【Small Size】Model:TL-B6B,the cpu fan of size is 60*60*25mm, suitable for compact cases or installation environments with limited space, and the high speed of 3200RPM can effectively dissipate heat.
- 【Detail Optimization】The case fan is equipped with double-sided silicone pads around it, which can better play the role of shock absorption protection, so that the fan can provide a quiet environment with low noise while dissipating heat efficiently. There is an indication of the wind direction on the inner frame of the fan, which can be used to determine the wind direction.
- 【Chassis Cooling】As a cooler fan for case heat dissipation, the included screws can be well fixed into the chassis, the screw hole of the fan is 50mm, and the fan hole is not threaded, so you need to use some force to screw into the chassis hole when installing.
Available on backorder
Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.
