THERMALRIGHT TL-B6B CASE FAN

Brand: THERMALRIGHT

【Fan Parameters】Model: TL-B6B, cpu fan size: 60*60*25mm, rated speed 3200RPM±10%. Noise ≤ 20.17dB (A), fan air flow: 16.17CFM, air pressure: 1.6mm H2O, current 0.13A, voltage DC 12V, connection interface: 4PIN PWM,Higher air flow for improved cooling performance.

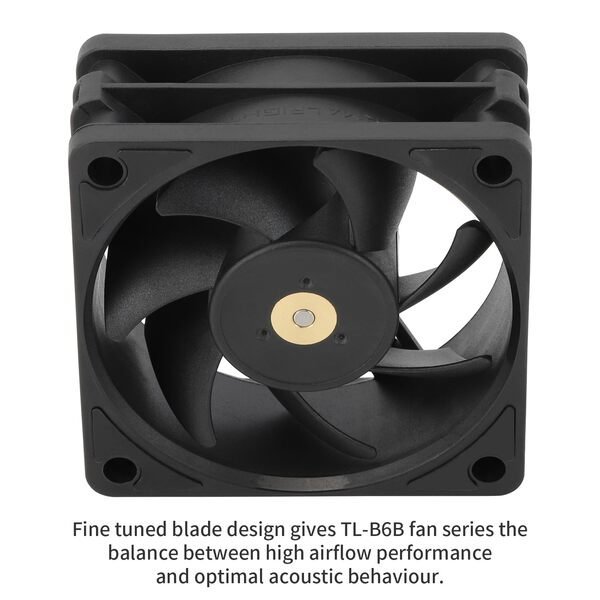

【High Air Volume Heat Dissipation】The cooling fan is 7 fan blades, which has a high air volume, which can provide strong heat dissipation, prevent the case temperature from overheating, and ensure the stable operation of the computer.
【Small Size】Model:TL-B6B,the cpu fan of size is 60*60*25mm, suitable for compact cases or installation environments with limited space, and the high speed of 3200RPM can effectively dissipate heat.

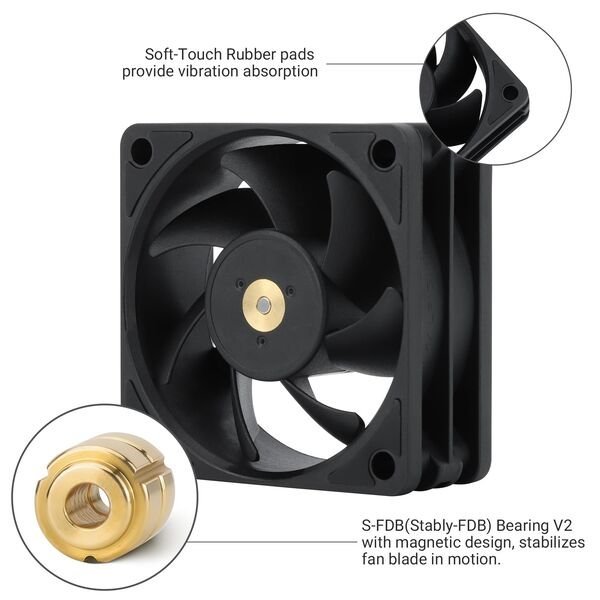

【Detail Optimization】The case fan is equipped with double-sided silicone pads around it, which can better play the role of shock absorption protection, so that the fan can provide a quiet environment with low noise while dissipating heat efficiently. There is an indication of the wind direction on the inner frame of the fan, which can be used to determine the wind direction.
【Chassis Cooling】As a cooler fan for case heat dissipation, the included screws can be well fixed into the chassis, the screw hole of the fan is 50mm, and the fan hole is not threaded, so you need to use some force to screw into the chassis hole when installing.

Size Guide
Size Guide
DRESSES
T-SHIRT
BOTTOMS

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

2XS 32 26 32

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

All measurements are in INCHES

and may vary a half inch in either direction.

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.
Delivery & Return
Goods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.

Size	Chest	Waist	Hips
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
2XL	44	38	44
All measurements are in INCHES and may vary a half inch in either direction.

Size	Chest	Waist	Hips
2XS	32	26	32
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
All measurements are in INCHES and may vary a half inch in either direction.

Size	Chest	Waist	Hips
XS	34	28	34
S	36	30	36
M	38	32	38
L	40	34	40
XL	42	36	42
2XL	44	38	44
All measurements are in INCHES and may vary a half inch in either direction.

... people are viewing this right now

Guaranteed Safe Checkout

THERMALRIGHT TL-B6B CASE FAN

The cooling fan is 7 fan blades, which has a high air volume, which can provide strong heat dissipation, prevent the case temperature from overheating, and ensure the stable operation of the computer.

SPECIFICATIONS:

Dimension：L60 mm x W60 mm x H25 mm
Rated Speed：3200 RPM±10% (MAX)
Noise Level：20.17 dBA (MAX)
Air Flow：16.17 CFM (MAX)
Air Pressure：1.60 mm H2O (MAX)
Ampere：0.13 A
Connector：4 PIN PWM
Bearing Type：S-FDB V2 Bearing
