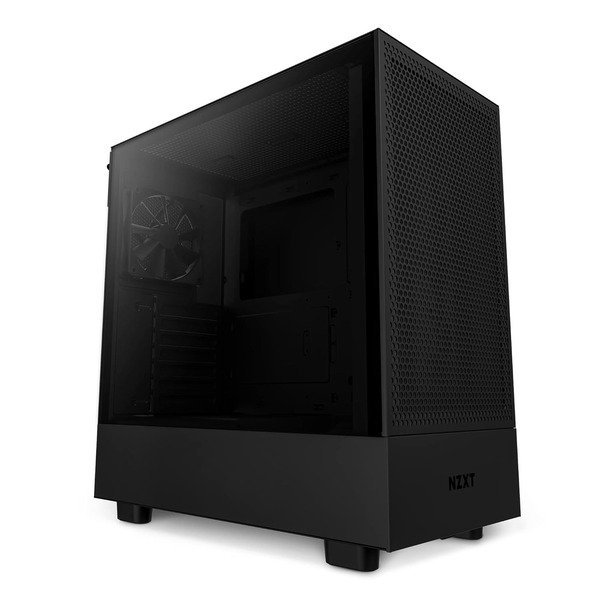

NZXT Chassis H Series H5 Flow Edition ATX Mid Tower Chassis All Black color (CC-H51FB-01)
₹9,829.66 ₹6,525.42
- Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F120Q fans
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
NZXT Chassis H Series H5 Flow Edition ATX
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
Specifications:
Key Specs | |
Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
Enclosure Type | Mid-Tower |
Case Material | SGCC Steel, Tempered Glass |
Dimensions | |
Height | 464mm (With Feet) |
Width | 227mm |
Depth | 446mm |
Weight | 7.01 kg |
Drive Bays | |
2.5″ | 1+1 |
3.5″ | 1 |
Fan Support | |
Front | 2 x 120mm / 2 x 140mm |
Top | 2 x 120mm |
Rear | 1 x F Series Quiet 120mm (Case Version) included |
Bottom | 1 x F Series Quiet 120mm (Case Version) included |
Compatibility & Clearance | |
Max CPU Cooler Clearance | Up to 165mm |
Max GPU Clearance | Up to 365mm |
Front Radiator Clearance | 45mm |
Cable Management | Up to 23mm |

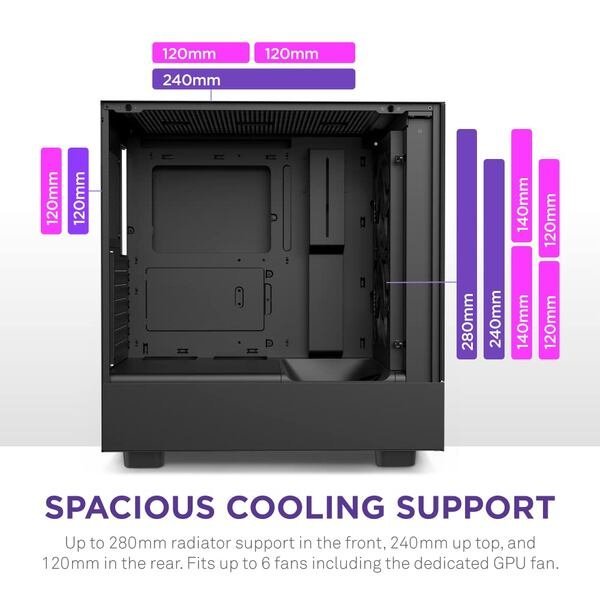

Radiator Support | |
Front | Up to 280mm |
Top | Up to 240mm |
Rear | Up to 120mm |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 1 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F120Q (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 62.18 CFM |
Static | 1.05 mm – H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
 Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
