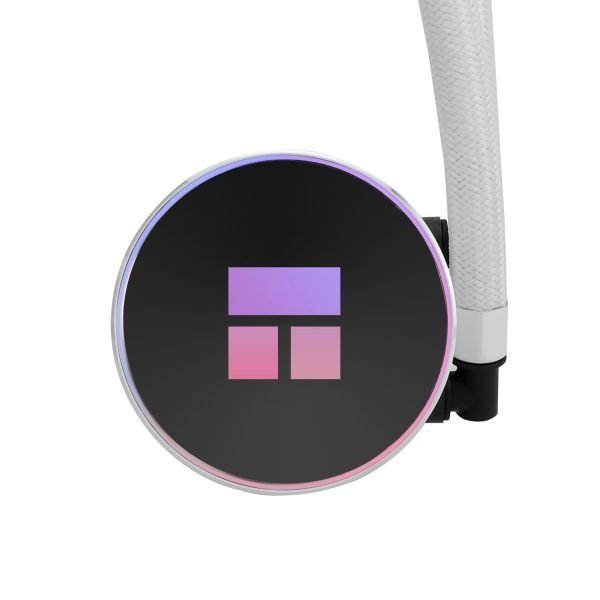

Thermalright Frozen Magic 360 SCENIC V2
Product Description
Specification:
Pump Dimensions:W72 mm x D72 mm x H52.5 mm
Pump Rated Speed:5300 RPM±10% (MAX)
Pump Noise Level:28 dBA (MAX)
Pump Power Consumption:1.5 W (MAX)
Pump Rated Voltage:12V DC
Ampere:0.12±20% A
Connector:4 PIN PWM
ARGB Connector:3 PIN 5V
Radiator:Aluminum
Pump MTTF:40000 Hours
Warranty:5 Years
TL-B12W SPECIFICATION:
Dimension:L120 mm x W120 mm x H25.6 mm
Weight: 205 g
Rated Speed:2150 RPM±10% (MAX)
Noise Level:28.1 dBA (MAX)
Air Flow:69 CFM (MAX)
Air Pressure:2.87 mm H2O (MAX)
Ampere:0.16 A
Connector:4 PIN PWM
Bearing Type:S-FDB V2 Bearing
