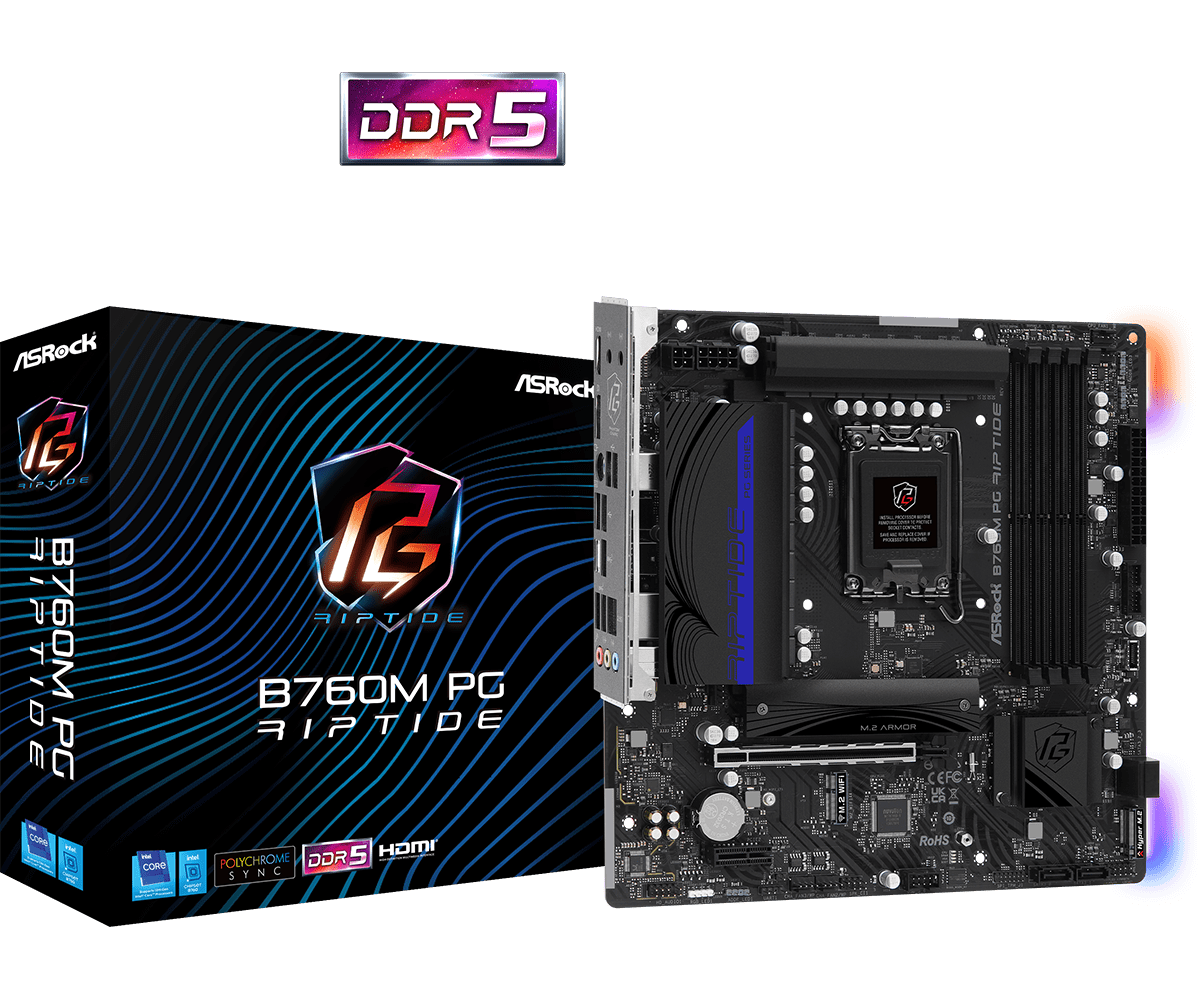

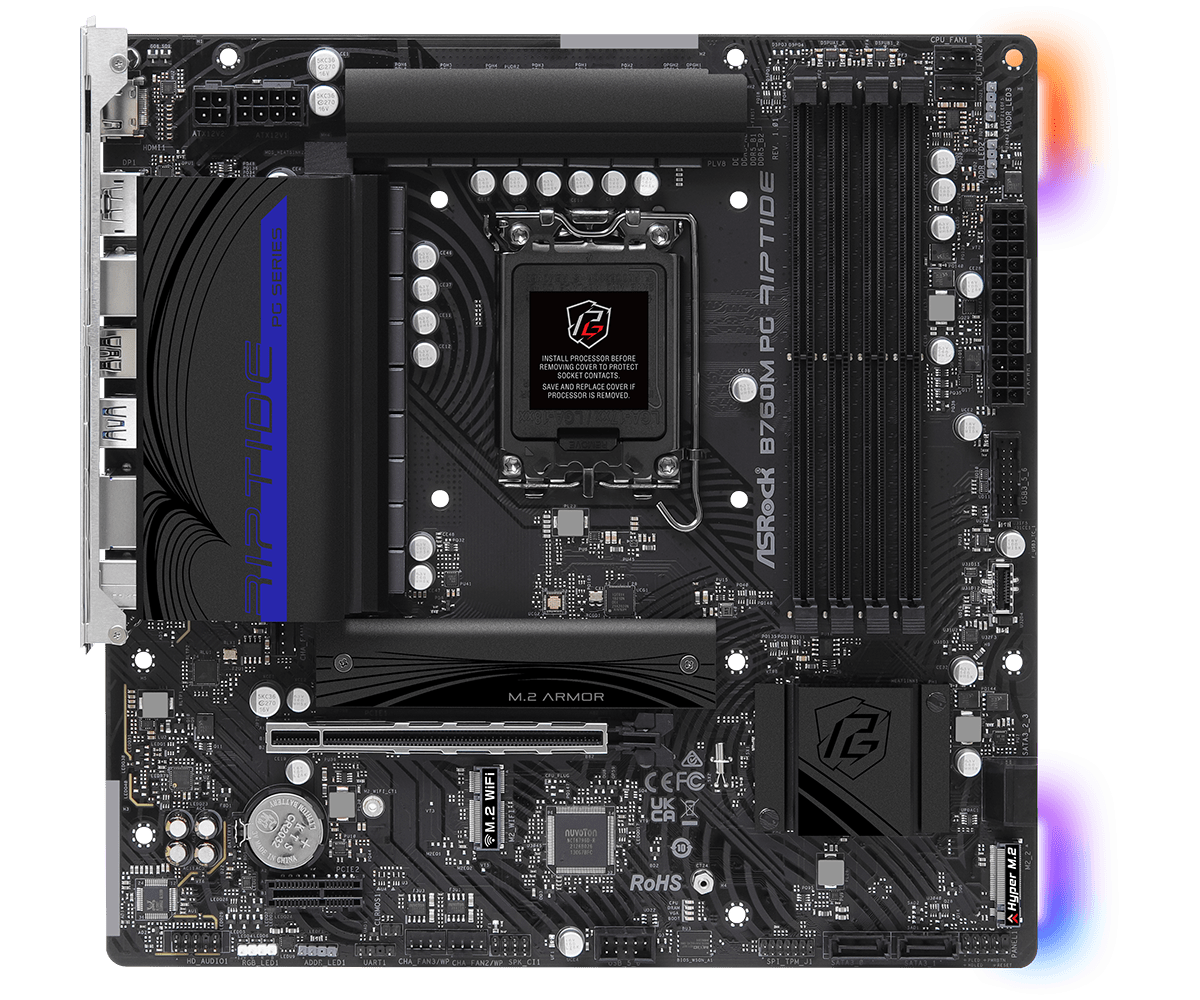

Asrock B760M PG Riptide
₹19,267.80 ₹12,042.37
![](https://pcbworldtech.com/wp-content/uploads/2022/09/22.png)
Features:
- Supports 14th Gen, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 14+1+1 Power Phase
- Supports DDR5 7200MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Available on backorder
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & ReturnGoods once sold will not be taken back or exchanged. Once invoice made cannot be modified or cancelled for any reasons thereof. The item is tested for physical damage at the point of sale and the company is not liable for the physical damage of item any more. It is also the duty of the buyer to immediately check at the counter physical condition of the purchased goods. All goods are consigned at buyer’s risk and the company is not responsible for any loss, damage or pilferage in transit. Our responsibility ceases the moment goods leaves our warehouse.
Physical damage / Mishandling of product/Tampering of warranty stickers –do not cover warranty. All Products sold by us require technically qualified PC hardware engineer for installation.
Price, specifications and terms of offers are subject to change without notice. PCB WORLD TECH is not responsible for typographical and/or photographical errors. Retail products are accompanied by the original manufacturer warranty. PCB WORLD TECH does not offer any technical support or sales advice. Physical damage to any product purchased at PCB WORLD TECH will effectively void warranty coverage. Improper Installation of CPU fans and/or improper clocking may cause CPUs to chip. CPUs that are chipped, burnt or have bent pins are considered physically damaged and cannot be returned for replacement. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage. As a result, PCB WORLD TECH will return any physically damaged Products back to the customer at the customer’s expense. You can expect your order to be processed within approximately 24-48 hours, provided the items are in stock and there are no problems with payment verification. Although PCB WORLD TECH does not guarantee same day-shipping we shall strive to do so wherever possible. Orders are not processed on weekends and holidays.
Asrock B760M PG Riptide
Specifications:
Unique Feature | Superb Productivity – Dual Channel DDR5 Rock-Solid Durability – 14+1+1 Power Phase – Pre-Installed I/O Shield Ultrafast Connectivity – 2.5G LAN EZ Update – ASRock Auto Driver Installer EZ Troubleshooter |
CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) – Supports ASRock Hyper BCLK Engine |
Chipset | – Intel® B760 |
Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 192GB – Supports Intel® Extreme Memory Profile (XMP) 3.0 |
BIOS | – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Phantom Gaming LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) – 6 x USB 2.0 (4 Rear, 2 Front) |
Connector | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header |
Rear Panel I/O | – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Phantom Gaming LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
Accessories | – 1 x User Manual – 2 x SATA Data Cables – 2 x Screws for M.2 Sockets |
Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
